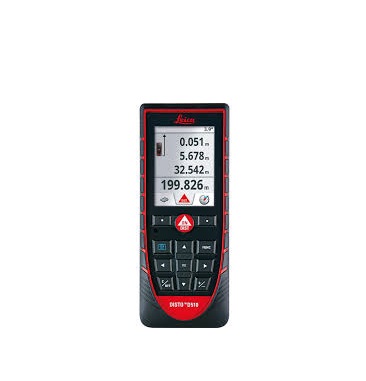

LEICA DISTO D510 激光测距仪 (200m, Camera, zoom 4x, Bluetooth)


Minimum / maximum measurements: •

Area / volume measurement: •

Triangle / room angle function: •

Painter function: •

Trapezium measurements: •

Pythagoras functions: 2 points and 3 points

Inclination tracking: •

Smart Horizontal Mode™: •

Sloped object measurement: •

Height tracking: •

Height profile measurements: •

Stake-out function: a/b

Subtraction / addition: •

Typical measuring accuracy: ± 1 mm

Range: up to 200 m

Measuring units: m, ft, in, yd

Power Range Technology™: •

Distance in m: 10, 50, 100 m

Ø of the laser dot in mm: 6, 30, 60 mm

Tilt sensor measuring range: 360°

Pointfinder with 4x zoom: •

Memory: 30 displays

Free App: •

Data interface*: Bluetooth® Smart

Measurements per set of batteries: up to 5000**

Multifunctional end-piece: automatic recognition

Batteries: type AA 2 × 1,5 V

Tripod thread: option

Protection class: IP65 – water jet protection and dust-tight

Dimensions: 143 × 58 × 29 mm

Weight with batteries: 198 g



  Simple and precise targeting - Pointfinder with 4x zoom
With the Pointfinder, the Leica DISTO™ D510 takes measurements with perfect accuracy and in unfavorable light conditions. This is a decisive advantage when working outside in sunny weather. Even if the red laser point is no longer visible to the naked eye, the target can be seen exactly in the crosshairs on the display.


  Unlimited number of measuring options - 360° tilt sensor
The Leica DISTO™ D510 is equipped with a 360° tilt sensor. This means that it is not only possible to measure angles, but horizontal distances too! Combined with the Pointfinder, amazing indirect measurement options are provided. Hence, measurements are possible where no reflective target point is available e.g. when determining the height of a tree or when measuring the height of a reflecting glass facade. These could not be measured with a conventional laser distance meter.


  Efficient height profile measurement
Using this function, the Leica DISTO™ D510 displays distances and height differences to an established reference point. This makes it easy to quickly make profile measurements, without having to use more expensive measuring methods. Also, this function can be used to check whether cross beams are straight, the levelness of existing floors, among other applications.


  Quick sketching - Bluetooth® Smart with app
The Leica DISTO™ D510 is capable of more than just measuring. Measurement data can be conveniently and accurately transferred using the integrated Bluetooth® Smart Technology. The free app Leica DISTO™ sketch supports the creation of ground plans or tables on iPhone or iPad. Dimensions can even be entered onto photographs with no effort whatsoever.


  Modern ergonomics
Providing the simplest possible operation of complex measuring functions is a must for Leica Geosystems. The Leica DISTO™ D510 has been adapted to the user interface of modern cell phones. Furthermore your favourite functions can be assigned to a pair of selection keys, for quick access with a single button press. And the integrated, easy-to-understand help function does not leave you in the lurch on site.


  Tough and easy to clean - IP65
The housing and keypad are specially sealed against water and dust. Cleaning under running water is also no problem. Furthermore the laser distance meter can be used in all weather conditions, being dust-proof and

Delivery package:
Art. No. 792 290
Art. No. 792 319 JP-Version


  • Leica DISTO™ D510 laser distance meter
  • Holster
  • Hand loop
  • Batteries


Technical specifications:
Typical measuring accuracy ± 1 mm
Range up to 200 m
Measuring units m, ft, in, yd
Power Range Technology™
Distance in m
Ø of the laser dot in mm
10, 50, 100 m
6, 30, 60 mm
Tilt sensor measuring range 360°
Pointfinder with 4x zoom
Memory 30 displays
Free App  •
Data interface* Bluetooth® Smart
Measurements per set of batteries up to 5000**
Multifunctional end-piece automatic recognition
Batteries type AA 2 × 1,5 V
Tripod thread   •
Protection class IP65 – water jet protection and dust-tight
Dimensions 143 × 58 × 29 mm
Weight with batteries 198 g


Minimum / maximum measurements
Area / volume measurement
Triangle / room angle function
Painter function
Trapezium measurements
Pythagoras functions 2 points and 3 points
Inclination tracking
Smart Horizontal Mode™
Sloped object measurement
Height tracking
Height profile measurements
Stake-out function a/b
Subtraction / addition
