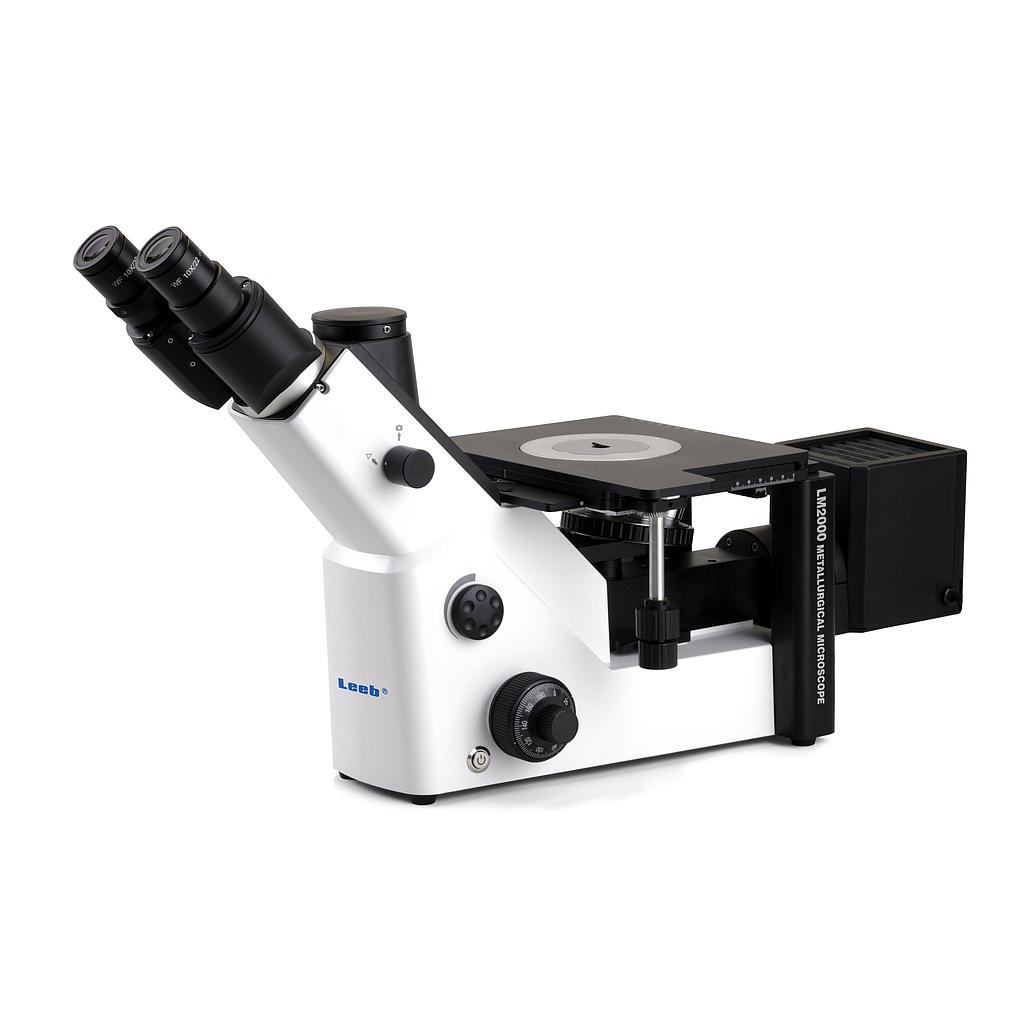

Leeb LM2000 倒置金相显微镜 (50X ~ 1000X)

Optical System: LIOS Optical System (Infinity-corrected)

Magnification range: 50X ~ 1000X

Eyepiece: Widefield WF10×/ 22mm (Optional φ23mm)

Objectives: Infinity LWD Plan Objectives: 5×/10×/20×/50×/80×/100× (Dry)

Tubes: Trinocular tubes, Inclined 45°, adjustable distance: 50-75mm

Light distribution:

100% for eyepiece observation

70% for eyepiece observation and 30% for camera

Observation mode: Bright-field, Simple polarizing (with polarizing units: Polarizer / Analyzer)

Nosepiece: Brightfield Holes: 5pcs

Focusing unit:

Coarse and Fine coaxial handle

Focus stroke: 12mm, Fine handle stroke per rotation: 200μm (min. scale: 2μm)

Mechanical Stage: Stage size: 210 mm×180mm, each X/Y stroke: 50×50mm, Scale: 0.1mm

Illumination: Kohler Reflected Illumination Optical System (filters are available)

Light source: 12V/50W halogen lamp / 5W LED lamp (optional) adjustable Light Intensity

Electrical system:

Safe low voltage DC input: 12V5A

Power Adapter Input voltage: 100V~240V

Output port: For CCD / CMOS Camera & Digital Still Camera of CANON/NIKON/OLYMPUS

Adaptor of Camera: 1×/0.75×/0.5×C-Mount (focus adjustable)

Optional Camera & Software: CCD / CMOS industrial camera and PC software (Not an analysis system)

Net Weight: 12Kg

Dimension: 27.5*68*37.5cm
