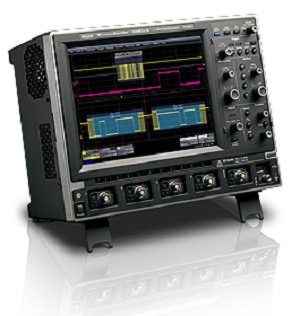

Teledyne LeCroy WaveSurfer 42MXs-B 示波器(400 MHz,5 GS / s,2通道)


Vertical System

Bandwidth400 MHz
Rise time875 ps
Input Channels2
Bandwidth Limiters20 MHz, 200 MHz
Input Impedance1 MΩ ± 1.0% || 16 pF ± 2 pF, 50 Ω ± 1.0%
Input CouplingAC, DC, GND
Maximum Input Voltage1 MΩ: ± 250 Vpk, 50 Ω: 5 VRMS
Channel-Channel Isolation≥ 52 dB at 100 MHz
≥ 40 dB at 400 MHz
Vertical Resolution8 bits
Sensitivity1 MΩ: 2 mV/div - 10 V/div
50 Ω: 2 mV/div - 1 V/div
DC Gain Accuracy±1.5%
Offset Range±1 V: 2 mV/div - 99 mV/div
±10 V: 100 mV/div - 1.0 V/div
±100 V: 1.02 V/div - 10 V/div


Horizontal System

Time/Division Range200 ps/div - 1000 s/div
Clock Accuracy5 ppm
Trigger and Interpolator Jitter3 ps (rms)


Acquisition System

Single-Shot Sample Rate/Ch5 GS/s
Equivalent Sample Rate50 GS/s
Memory32 Mpts/Ch on 2 Ch
16 Mpts/Ch on 4 Ch


Acquisition Modes

AveragingUp to 1,000,000
Peak Detectna
InterpolationLinear, Sin x/x
Enhanced ResolutionUp to 11 bits
Sequence ModeUp to 5,000 segments


Triggering System

ModesNormal, Auto, Single, Stop
SourcesCh 1 - Ch 2, EXT, EXT/10, AC Line
Coupling ModeAC, DC, LF Rej, HF Rej,
Pre-trigger Delay0 - 100% Full Scale
Post-trigger Delay0 - 10,000 Divisions
Trigger Sensitivity1.0 division: 200 MHz
2.0 division: 400 MHz
External Trigger SensitivityExt: 50 mV from DC to 10 MHz
150 mV from 10 MHz to 400 MHz
Ext/10: 0.5 V from DC to 10 MHz
1.5 mV from 10 MHz to 400 MHz
External Trigger Input RangeExt: ±0.4 V, EXT/10: ±4.0 V


Display

TypeColor Touch Screen 10.4" TFT-LCD
ResolutionSVGA: 800 x 600
Grid StylesYT, XY


Trigger Types

Standard TriggersEdge, Glitch, Width, Logic (Pattern), TV (NTSC, PAL, SECAM, HDTV), Runt, Slew Rate, Interval, Dropout, Qualified
Optional Advanced Triggersna
Optional Serial Data TriggersI2C, SPI, UART/RS-232, CAN, LIN, FlexRay, MIL-STD-1553, ARINC 429, Audio (I2S, LJ, RJ, TDM), USB, MIPI D-PHY, DigRF3G


Internal Storage

Waveform Storage4 memory waveforms plus internal HDD
Setup Storage6 setups


Math

Number of Math Traces1
Standard Math FunctionsAdd, Subtract, Multiply, Divide, FFT, Absolute Value, Averaging (summed and continuous), Derivative, Envelope, Enhanced Resolution, Floor, Integral, Invert, Reciprocal, Rescale, Roof, Square, Square Root
Optional Math Functionsna


Measurements

Number of Measurements Displayed6
Measurement ParametersAmpltidue, Area, Base, Delay, Duty Cycle, Fall Time (90% - 10%), Fall Time (80% - 20%), Frequency, Maximum, Mean, Minimum, Overshoot+, Overshoot-, Period, Peak-Peak, Phase, Rise Time (10% - 90%), Rise Time (20% - 80%), RMS, Skew, Standard Deviation, Top, Width+, Width-


Probes

ProbesQty. (2) ÷10 Passive Probes
Scale FactorsAutomatic/Manual: ÷1, ÷10, ÷20, ÷100, ÷200, ÷1000, ÷2000, ÷10000
Variable: (÷1x10-6 - ÷10000)
Calibration Output1 kHz square wave, 1.0 Vp-p, output to probe hook


Interface

GPIB Port (optional)1 (optional)
USB (Device)0
Ethernet Port1
USB (Host)5
Serial Port1


Power Requirements

Voltage90 - 264 VAC, 47 HZ - 63 Hz
90 - 132 VAC, 380 HZ - 420 Hz
Max. Power Consumption290 VA


Environmental and Safety

Temperature (Operating)5 °C to 40 °C
Temperature (Non-Operating)-20 °C to 60 °C
Humidity (Operating)80% RH, 31 °C
50% RH, 40 °C
Humidity (Non-Operating)95% RH
Altitude (Operating)2000 m
Altitude (Non-Operating)12,192 m


Physical Dimensions

Dimensions (HWD)260 mm x 340 mm x 152 mm
(10.25" x 13.4" x 6")
Weight7.26 kg. (16.0 lbs.)
