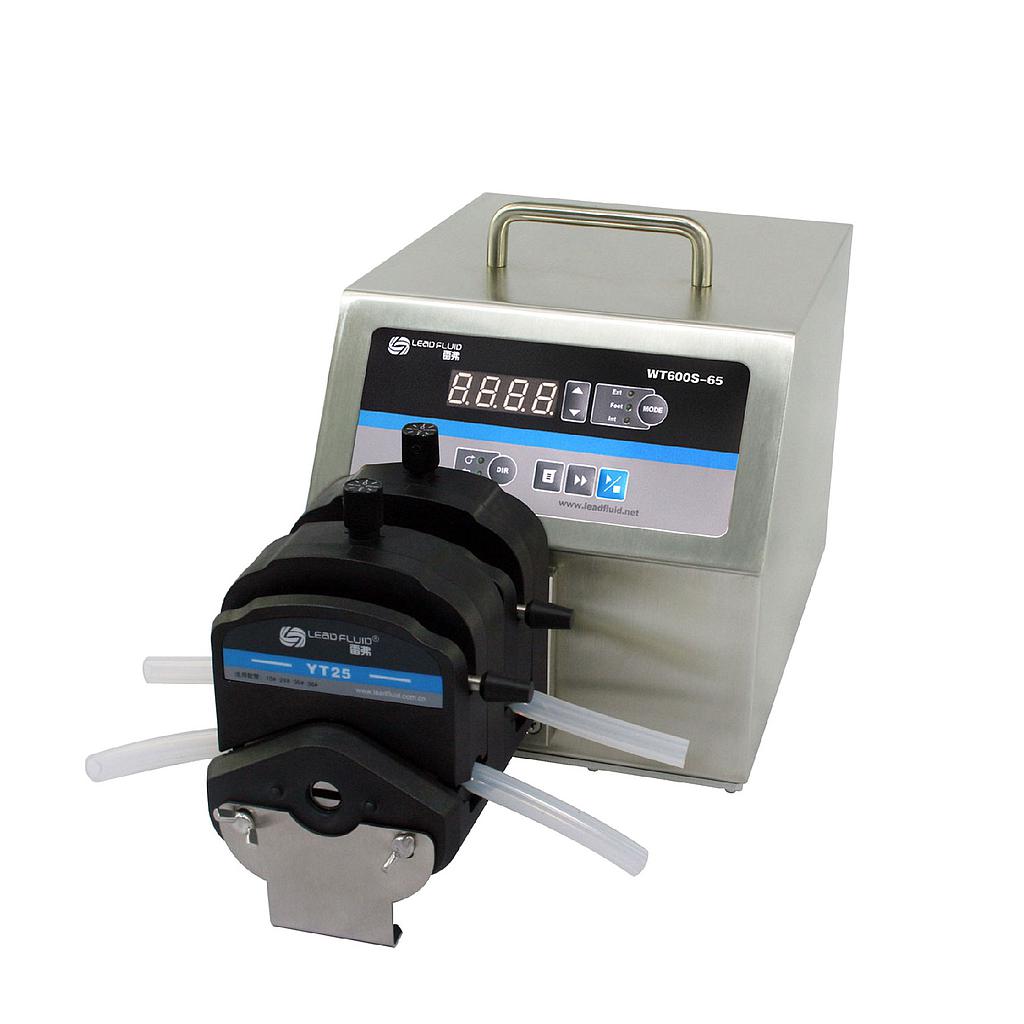

Leadfluid WT600S-65 基本变速蠕动泵 (1.8-2300mL/min, 2 CH)

Flow range: 1.8-2300 mL/min

Speed range: 30-600 rpm

Speed resolution: 1 rpm

Flow accuracy: 3%

Power supply: AC 180-264V 50Hz/60Hz (standard); AC 90-132V 50Hz/60Hz (optional)

Power consumption: <200W

External on/off control voltage: 5V, 12V (standard), 24V (optional); External control analog signal: 0-5V (standard), 0-10V, 4-20mA (optional)

Communication interface: RS485 MODBUS

Operating condition: 0-40 °C

Relative humidity: < 80%

IP grade: IP65

Dimensions (L x W x H): 330 x 220 x 235 mm (13.0 x 8.7 x 9.3 inch)

Weight: 7.1kg (15.7 lbs)

Details
Drive typeSuitable pump headschannelTubing size (mm)Flow rate (mL/min) per channel
WT600S-65YZ15113# 14# 16# 19# 25# 17#18#3-2300
YZ25115# 24#50-1700
2 x YZ15213# 14# 16# 19# 25# 17#18#3-2300
2 x YZ25215# 24#50-1700
KZ25115# 24# 35# 36#80-6000
DT15-24219# 16# 25# 17#20-2240
YT15113# 14# 16# 19# 25# 17# 18#3-2300
YT25115# 24# 35# 36#50-2900
2 x YT15213# 14# 16# 19# 25# 17# 18#3-2300
2 x YT25215# 24# 35# 36#50-2900
