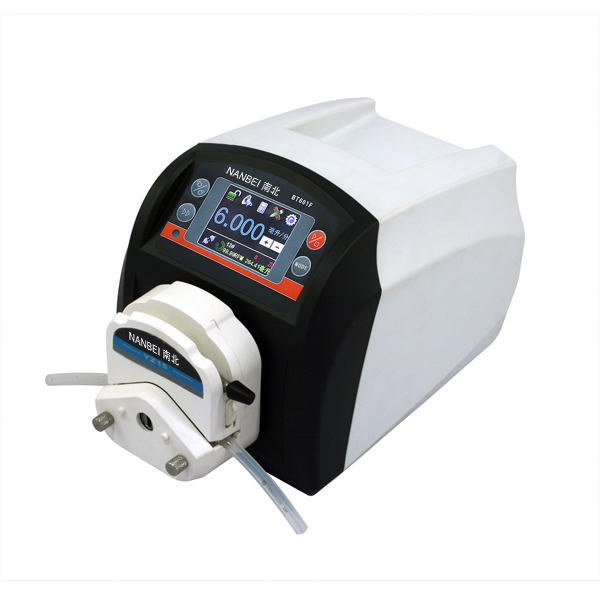

Leadfluid BT601F Intelligent Dispensing Peristaltic Pump (0.006-2300mL/min, 1 CH)

Flow range: 0.006-2300 mL/min

Speed range: 0.1-600 rpm

Speed resolution: 0.1 rpm

Speed accuracy: 0.2%

Power supply: AC 100-240V, 50Hz/60Hz

Power consumption: < 50W

Logic level control signal: 5V, 12V (standard), 24V (optional)

External analog control signal: 0-5V (standard); 0-10V, 4-20mA (optional)

Communication interface: RS485 MODBUS

Operating condition: Temperature 0-40°C; Relative humidity < 80%

IP grade: IP31

Dimensions (L x W x H): 257 x 180 x 197 mm (10.12 x 7.09 x 7.76 inch)

Weight: 4.9 kg (10.80 lbs)

Details
Drive typePump headChTubing sizeFlow rate per channel (mL/min)
BT601FYZ15113# 14# 16# 19# 25# 17#18#0.006-2300
YZ25115# 24#0.16-1700
YT15113# 14# 16# 19# 25# 17# 18#0.006-2300
YT25115# 24# 35# 36#0.16-2900
