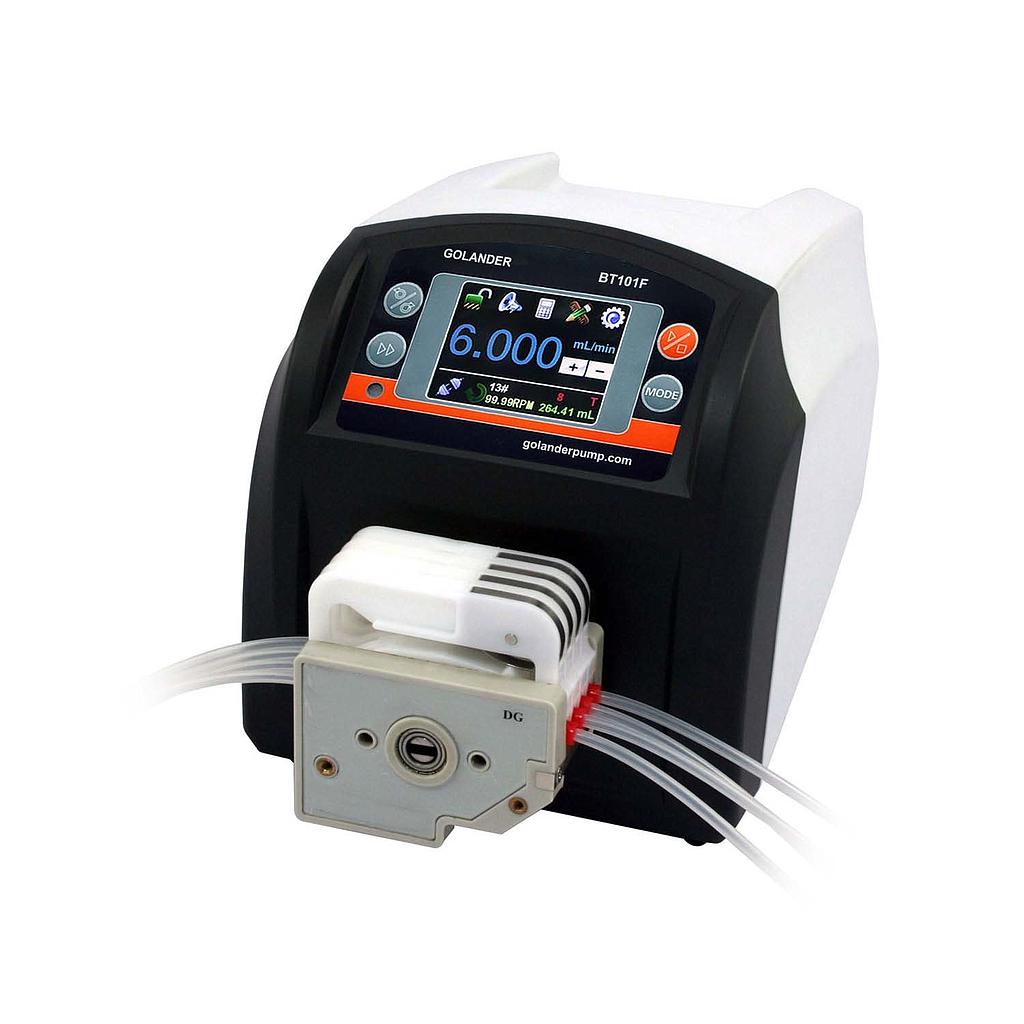

Leadfluid BT101F 智能点胶蠕动泵 (0.0002~49mL/min, 4 CH)

Flow range: 0.0002~49 mL/min

Speed range: 0.1-150 rpm

Speed resolution: 0.1 rpm

Speed accuracy: 0.2%

Power supply: AC 100-240V, 50Hz/60Hz

Power consumption: < 30W

Logic level control signal: 5V, 12V (standard), 24V (optional)

External analog control signal: 0-5V (standard), 0-10v, 4-20mA (optional)

Communication interface: RS485 MODBUS

Operating condition: Temperature 0-40°C; Relative humidity < 80%

IP grade: IP31

Dimensions (L x W x H): 257 x 180 x 197mm (10.12 x 7.17 x 7.79 inch)

Weight: 4.5 kg (9.92 lbs)

Details
Drive typePump headsChTubing size (mm)Flow rate per channel  (mL/min)
BT101FDG6-1 (6rollers)1Wall:0.8~1, ID:≤3.170.0002-49
DG10-1 (10rollers)1Wall:0.8~1, ID:≤3.170.0001-41
DG6-2 (6rollers)2Wall:0.8~1, ID:≤3.170.0002-49
DG10-2 (10rollers)2Wall:0.8~1, ID:≤3.170.0001-41
DG6-4 (6rollers)4Wall:0.8~1, ID:≤3.170.0002-49
DG10-4 (10rollers)4Wall:0.8~1, ID:≤3.170.0001-41
DT10-18113# 14#, Wall:0.8~1, ID:≤3.170.0002-82
DT10-28213# 14#, Wall:0.8~1, ID:≤3.170.0002-82
YZ15113# 14# 16# 19# 25# 17#18#0.006-570
YZ25115# 24#0.16-420
YT15113# 14# 16# 19# 25# 17# 18#0.006-570
YT25115# 24# 35# 36#0.17-720
