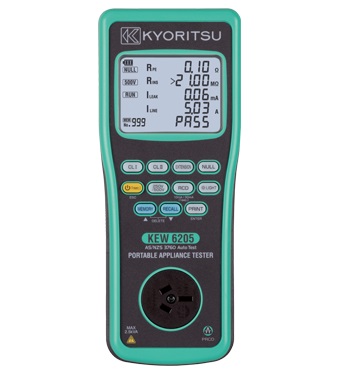

KYORITSU 6205 便携式家电安全测试仪

- Class Ⅰ Test

• Protective conductor resistance

   (Test current 200mA DC nominal)

• Insulation resistance test (250V or 500V)

• Leakage current test (100-253V/50Hz)

• Load current test (100-253V/50Hz)

- Class Ⅱ Test

• Insulation resistance test (250V or 500V)

• Leakage current test (100-253V/50Hz)

• Load current test (100-253V/50Hz)

- Extension Lead Test

• Protective conductor resistance (Test current 200mA DC nominal)

• Insulation resistance test (between Line/Neutral-Earth short, Line/Neutral)

• Leakage current test (100-253V/50Hz)

• Polarity test

- RCD Test :  (10mA/30mA)

- Mains voltage indlcation

Display range : 30V-270V

Accuracy : ±5V

- Protective conductor resistance test

Measuring range : 0.00-20.00Ω

Open circuit voltage : 5V±0.4V DC

Measuring current : 200mA DC(nominal value)

Accuracy ±3%rdg±5dgt

- Insulation resistance test

Rated volatge : 250V 500V

Measuring range : 0.00-20.00MΩ

No-load voltage : 250V DC +20%,-0% 500V DC +20%,-0%

Short circuit current : 1.5mA DC or less

Accuracy : ±2%rdg±3dgt

- Load current/Leakage current test

Load current

Mains voltage range : 100-253V/50Hz

Measuring range : 0.10-10.00A rms

Accuracy ±10%rdg±5dgt

Leakage current : 0.10-20.00mA rms

Accuracy : ±3%rdg±5dgt

- RCD test

Rated voltage : 230V -15% - +10%/50Hz

Rated current : 10mA/30mA

Function : × 1 (0.0ms-500.0ms)

    × 5 (0.0ms-40.0ms)

Operating time accuracy ±2ms(≦40ms),±8ms(>40ms)

- General

Power source : LR6(AA)(1.5V) × 6

Applicable Standards IEC/EN61010-1 CAT II 300V, IEC/EN61010-2-030,

IEC/EN61010-031, EN61326-2-2, AS/NZ3760

Dimensions / Weight : 261(L) × 104(W) × 57(D)mm / Approx. 930g(including batteries)

Included Accessories

+ 7277(Mains lead),

+ 7129A(Test lead with Alligator clip),

+ 7161A(Flat test prod),

+ 7276(Adaptor for Extension cord),

+ 9193(Carrying case),

+ 8928(Fuse[10A/250V]),

+ 9121(Shoulder strap),

Buckle, LR6(AA) x 6, Instruction manual

- Optional Accessories

+ 8263-USB(USB cable with "KEW Report(software)"),

+ 7275(Printer cable:Mini Din 6pin-D-sub 9pin),

+ 7248(Test lead with Alligator clip and Flat test probe)
