Kongter BMS-3923-6/B 电池监控系统 (RS485, 2V, 6-channel)

Monitoring Terminal (MT)

Communication with CU: RS485

Cell type: 2V

Cells connected per MT: 6

Function: Test battery voltage, internal resistance, capacitance & temperature and send to CU via simply via power line carrier (PLC). It has battery

equalization function.

Model selection: 6-channel

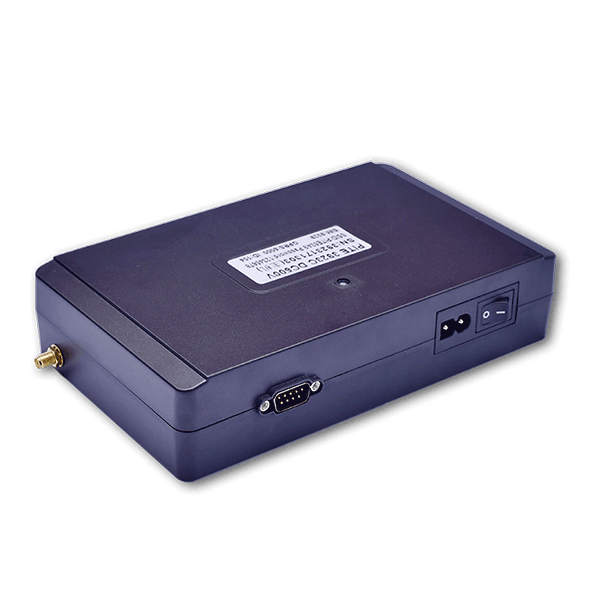

Control Unit (CU)

Communication with server: WiFi or GPRS

Communication with MT: RS485

Function: Test string voltage, current and collect measurement data from MT simply via power line carrier (PLC). And it will send all data to cloud server via its

built-in WiFi/GPRS module.
