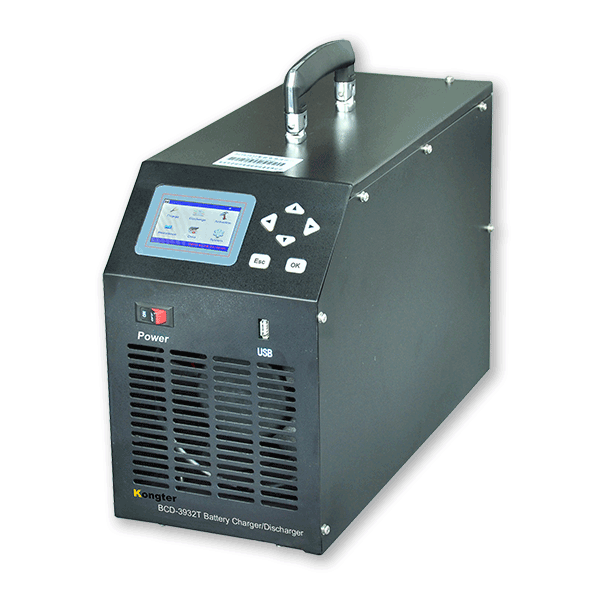

Kongter BCD-3932T 电池充放电器 (AC220V or 110V,single cell)

Power supply: AC220V or 110V

LCD display: 320*240 pixels

Com port: USB

Internal memory: 16MB

External memory: 4GB (USB)

Charging current:

         1-50A(cell: 1.2V)

         1-100A (cell: 2V)

         1-30A (cell: 4V, 6V, 8V & 12V)

         Resolution: 1A

         Accuracy: 1%

Discharge current:

         1-25A(cell: 1.2V)

         1-100A(cell: 2V)

         1-30A(cell: 4V, 6V, 8V & 12V)

         Resolution: 1A

         Accuracy: 1%

Voltage measurement:

   1.2V: 1.08V-1.41V (Discharge)

         1.08V-1.44V (Charge)

   2V:   1.8V-2.35V (Discharge)

         1.8V-2.4V (Charge)

   4V:   3.6V-4.7V (Discharge)

         3.6V-4.8V (Charge)

   6V:   5.4V – 7.05V (Discharge)

         5.4V-7.2V (Charge)

   8V:   7.2V – 9.4V (Discharge)

         7.2V-9.6V (Charge)

   12V:  10.8V – 14.1V (Discharge)

         10.8V-14.4V (Charge)

   Resolution: 0.1V

   Accuracy: 0.25%

Temperature: 5℃~50℃

Humidity: 5%~90%RH

Dimension: 395*370*200 mm

Weight: 10Kg (main unit)

Standard: CE, EMC standard, LVD EN60335
