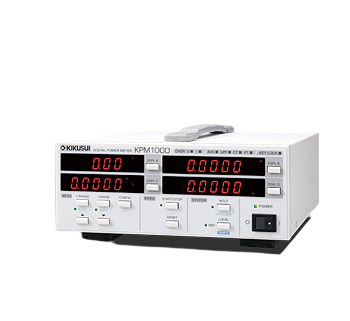

KIKUSUI KPM1000 数字功率计 (5mA〜20A)

Input

Measurement line: Single-phase, two-wire system (measurement category: CAT II)

Voltage input terminal: Safety terminal

Current input terminal: M6 terminal block

Rated measured voltage: 300 Vrms

Rated measured current: 20 Arms

Maximum allowable input voltage: 900 Vpk or 360 Vrms

Maximum allowable input current: 120 Apk or 24 Arms

Maximum isolation voltage: 300 V

Measurement: V, A, P, Hz

Communication function: RS232C (standard), GPIB/USB (select either, factory option)

Insulation resistance: 100 MΩ or greater at 500 Vdc

Accessories

Power cord

Safety plugs

CD-ROM

Quick start

Safety information

Packing list
