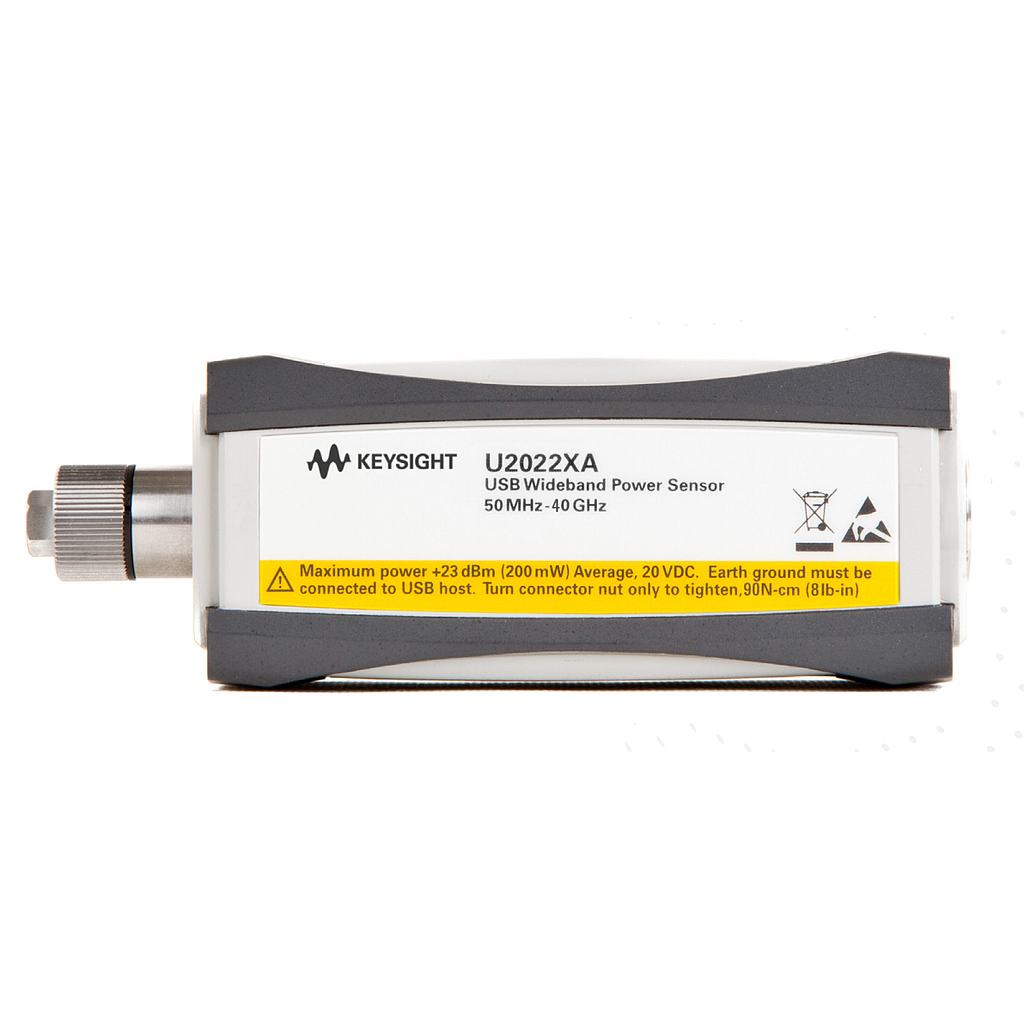

KEYSIGHT U2022XA-H50 Peak and Average Power Sensors (USB type, opt.50MHz~50GHz)

Frequency range: 50 MHz to 50 GHz (with Option H50)

Power range:

Normal mode

–30 dBm to 20 dBm (50 MHz to <500 MHz)

–35 dBm to 20 dBm (500 MHz to 40 GHz)

–35 dBm to 8 dBm (> 40 GHz to 50 GHz)

Average only mode

–45 dBm to 20 dBm (50 MHz to 40 GHz)

–45 dBm to 8 dBm (> 40 GHz to 50 GHz)

Connector type: 2.4 mm (m)

Inputs/Outputs

Current requirement: 450 mA max (approximately)

Recorder output: Analog 0 to 1 V, 1 kΩ output impedance, SMB connector

Video output: 0 to 1 V, 50 Ω output impedance, SMB connector

Trigger input: Input has TTL compatible logic levels and uses a SMB connector

Trigger output: Output provides TTL compatible logic levels and uses a SMB connector

Remote programming

Interface: USB 2.0 interface USB-TMC compliance

Command language: SCPI standard interface commands, IVI-COM, IVI-C driver and LabVIEW drivers

Maximum measurement speed

Free run trigger measurement: 25,000 readings per second 1

External trigger time-gated measurement: 20,000 readings per second


Standard shipped Items

– Power sensor cable 5 ft (1.5 m), default cable length

– BNC male to SMB female trigger cable, 50 Ω, 1.5 m (Quantity: 2)

– Certificate of calibration

Details

Datasheet


Manual
