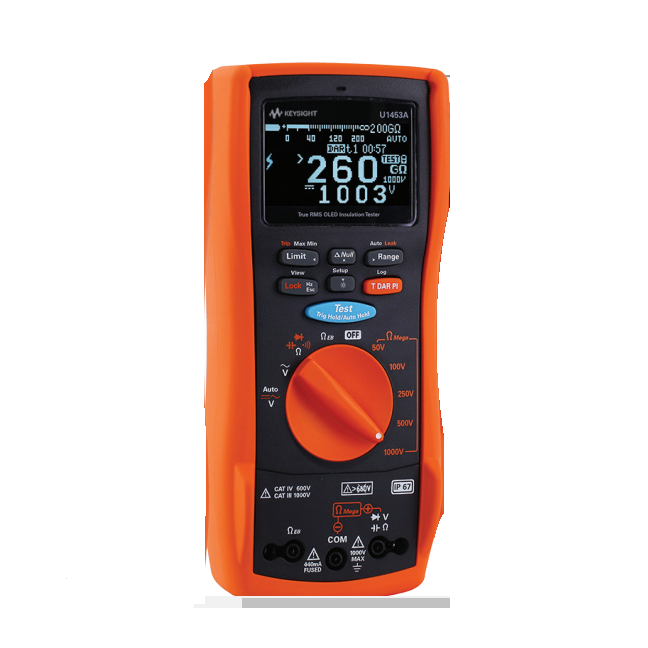

KEYSIGHT U1453A 绝缘电阻测试仪 (1000V, 260GΩ)

Display type: OLED

Insulation resistance tester features

Insulation test voltage range: 50, 100, 250, 500, 1,000 V

Insulation resistance range: 260 GΩ

Earth bond resistance measurement: 6 to 60K Ω

Timed, PI, DAR: √

Adjustable insulation test voltages: 10 to 1.1K V

Live circuit test inhibit: 30, 50, 75 V

Remote testing and report generation (1): √

Multimeter features: AC / DC voltage, auto AC / DC voltage identification2, resistance, continuity, capacitance, diode test


Details

Datasheet


Features

– Insulation resistance test up to 260 GΩ

– Adjustable test voltages 50, 100, 250, 500, and 1,000 V; 10 V up to 1.1 kV on select models

– Simplify test report generation with a click of a button

– Certified to IP 67, drop proof up to 3 m (10 ft), CAT III 1000V and CAT IV 600V

(1). Requires Keysight Handheld Logger software for Windows PC and Keysight Insulation Tester App for iOS/Android.

(2). Automatically identify the signal component (AC or DC) of an electrical source.
