KEYSIGHT U1117A 远程链接解决方案 (for U1200, U1115A, U1450A/U1460A Series, iOS & Android)

General

Operating temperature: –20 to 55 °C, up to 80% at 40 °C RH

Storage compliance: –40 to 70 °C, up to 95% at 40 °C RH

Power consumption: Maximum 561 mVA for two 1.5 V AAA batteries

Battery type (included): 2 x AAA alkaline

Battery life: 20 hours

Dimension (H x W x D): 39.0 x 71.0 x 37.0 mm

Weight: 60 g

Bluetooth: Bluetooth Version 2.1 + EDR compliant, SPP profile, Class 1 device (with 10 meters connection range)

Compatibility

Device Keysight U1200 Series handheld meters, Keysight U1450A/60A Series insulation resistance tester (1) , Keysight U1115A remote logging display

PC software: Keysight handheld meter logger

Mobile application: Keysight mobile meter, Keysight mobile logger, Keysight insulation tester

Other devices: iPhone, iPad, iPod touch, Android smartphone/tablet, Windows-based (with Bluetooth enabled)


Detail

Datasheet


Features

– Extended measurement distance of up to 100 meters

– View readings of up to four handheld meters simultaneously

– Compatible across all existing Keysight U1200 series handheld meters

– 60,000 points interval logging*

– Download logged data to a PC via Bluetooth connection*

– Micro USB external power port*

– Indoor and outdoor viewing modes*

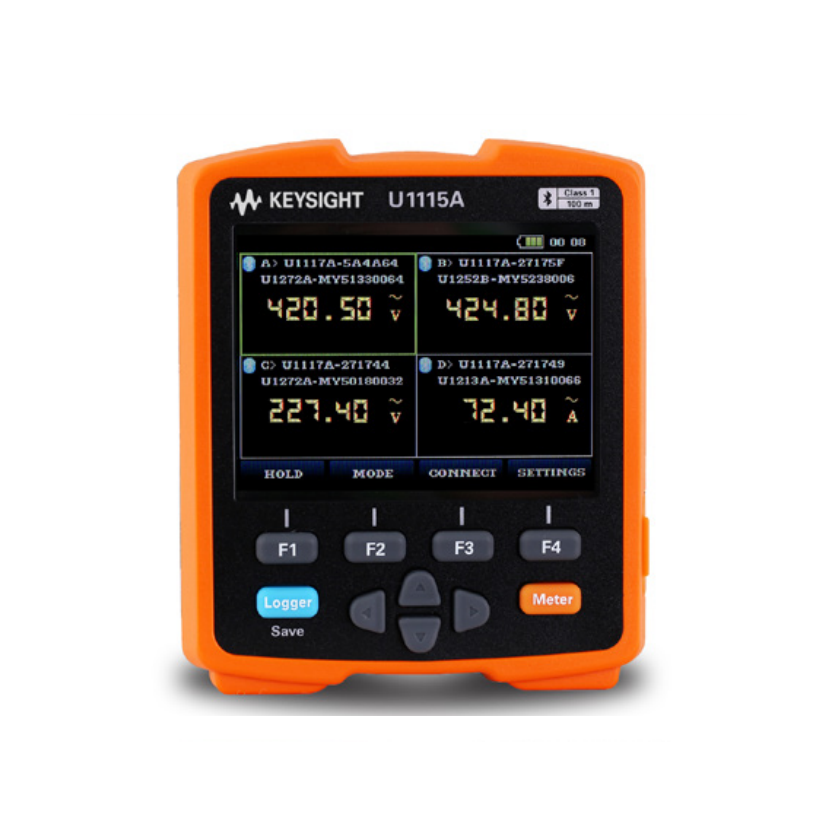

* U1115A

(1)

U1177A IR-Bluetooth adapter is compatible with the U1450A/U1460A Series to establish wireless connectivity on a PC or Android smart devices.

U1117A IR-Bluetooth adapter is compatible with the U1450A/U1460A Series to establish wireless connectivity on a PC or iOS/ Android smart devices.

U1115A is not compatible with the U1450A/U1460A Series.
