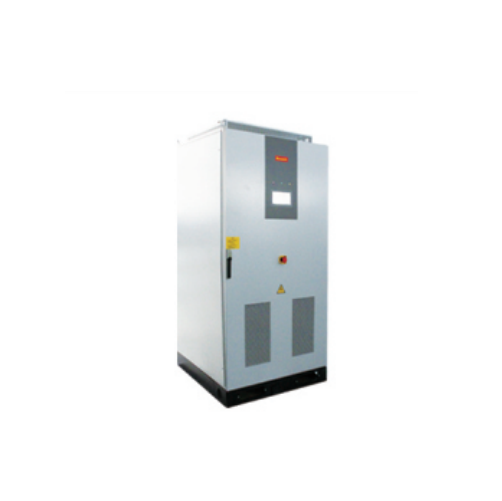

Kewell EVD-200-800 精密双向直流电源 (400V, ±500A, 150kW)

Power: 200kW

Input

- Phase: 3φ3W+G

- Voltage: 380V±10%

- Frequency: 50Hz/60Hz±3Hz

- Power factor: ≥0.99

- THD: ≤3%

Output

- Volt range: 24-800V

- Rated voltage: 400V

- Rated current: ±500A

- Peak current: ±625A

- Peak power: 250kW

- Peak time: 60S

- Voltage accuracy: ≤0.1%·FS+5dgt

- Response time: ≤5ms (10%-90% process load)

- Switching time: ≤10ms (90%- -90% switch)

- Voltage ripple: 0.2%·FS

Environmental conditions and safety

- Protection grade: IP21 (Indoor)

- Cooling mode: Force-air cooling

- Environmental temperature: -10~40°C

- Relative humidity: 10-90% (non-condensing)

- Noise: <65dB

Detail

Datasheet
