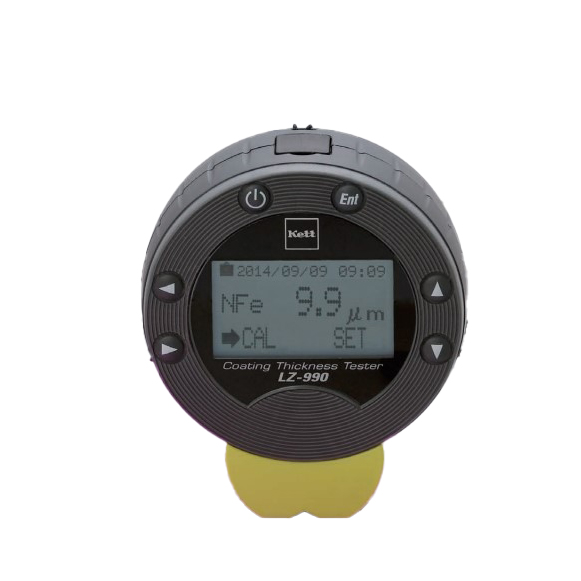

Kett LZ-990 涂层测厚仪
制造商: Kett Model: LZ-990 - 报价要求
- 联系
Measuring Method: Electromagnetic and Eddy Current (automatic substrate recognize function)
Applications: Non-magnetic coatings on magnetic metal or insulating coatings on non-magnetic metal
Measurable Range: 0~2000 µm or 0~80.0 mils
Measuring Accuracy:
±1µm under 50 µm
±2% at 50 µm – under 1000 µm
±3% at 1000 µm – under 2000 µm
Resolution:
±0.1 µm under 100 µm,
1 µm at 100 µm or greater
Display: Digital (backlit LCD, minimum displayed digit is 0.1 µm )
Data Memory: Approximately 1000 points
Application Memory: 8 types each of electromagnetic and eddycurrent; 16 total calibration curves can be memorized
Power Supply: 1.5 V alkaline batteries (size AAA) x 2
Power Consumption: 40 mW (with backlight off)
Temperature: 0 to 40 ˚C
Output: PC (USB), Printer (RS-232C)
Dimensions & Weight: 82 (W) x 99.5 (D) x 32 (H)mm, Approx. 160 g
Accessories: Zero Calibration holder (Iron substrate, aluminum substrate), Calibration foils (50, 100, 1000 µm), Batteries (size AAA) x 2, Carrying pouch, Wrist strap, Operating manual
Optional Accessories: Calibration foils (other than the one furnished), Measuring stand LW-990, Printer VZ-380, Printer cable, Data Logger software (LDL-01), USB computer cable
