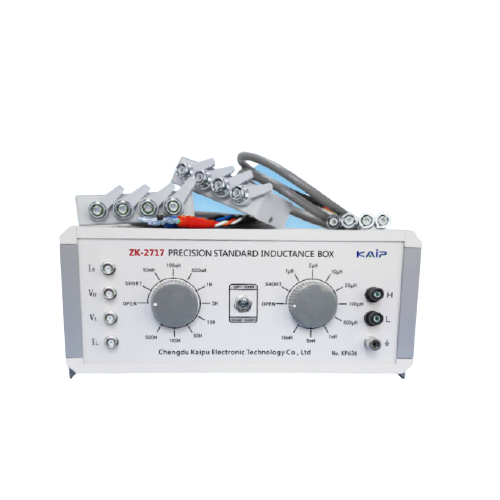

KAIP ZK-2717 精密标准电感箱 (1μH~500H)

Operation conditions

Ambient temperature: (23±2) °C

Relative humidity: (50±10)%

1. Inductancerange:

1μH, 5μH, 10μH, 50μH, 100μH, 500μH,

1mH, 5mH, 10mH, 50mH, 100mH, 500mH,

1H, 5H, 10H, 50 H, 100H, 500H,

2. Zero-switchinductance: < 0.8μH

3. Error:

1μH~1H: ± (0.05%+0.05μH)

5H~500H: ±0.02%

4. Output mode: Three-terminal binding post output or Four-terminal BNC output

5. Calibration frequency/operating frequency (f):

1μH~1H: 1000Hz

5H~500H: 100Hz

6. Maximum operating voltage (U): ≤50V

Detail

Datasheet


Features

ZK-2717 precision inductance box has 1x and 5x alternating step sizes in inductance change and is an ideal standard inductance measuring instrument with a wide inductance range, high performance, good stability, small volume and light weight. It is suitable for measurement laboratories, research institutions, production, and particularly suitable for field calibration/verification of RLC measuring instruments and special inductance measuring instruments in factories, and has the following main features:

1.This inductance box is first time to combines network simulated inductor with toridal-core inductor. It has high accuracy, small volume, and light weight;

2.It has excellent electromagnetic shielding, vibration prevention and moisture proofing technique to provide extreme stabile performance;

3.This inductance boxis first time to combines network simulated inductor with toridal-core  inductor. It has high accuracy, small volume, and light weight.
