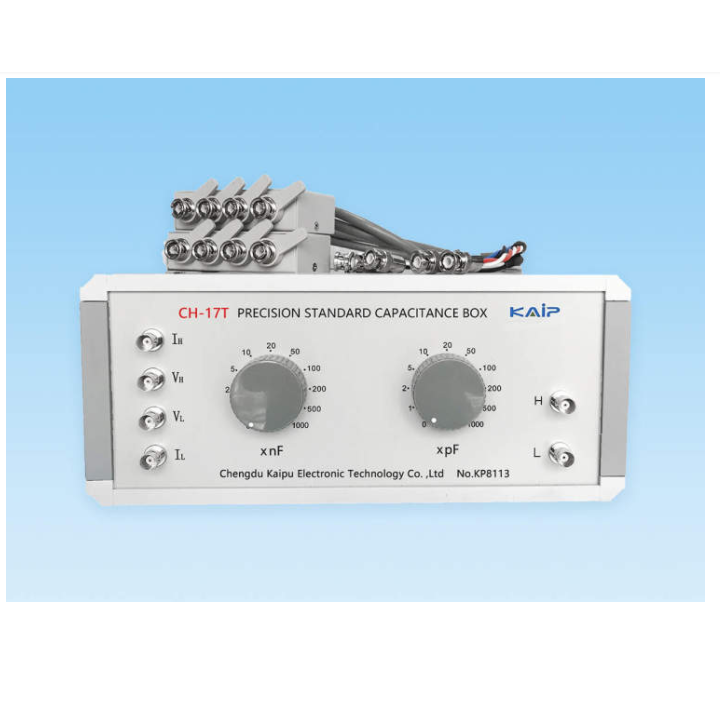

KAIP CH17-T 精密标准电容校准机 (1pF~1μF)

Operation conditions

Ambient temperature: (23±2) °C

Relative humidity: (50±10)%

1. Capacitance range: 1pF,2pF,5pF,10pF,20pF,50pF,100pF,200pF,500pF,1nF,2nF,5nF,10nF,20nF,50nF,100nF,200nF,500nF,1μF

2. Digits of reading dial: Two-dial

3. Zero capacitance: <0.00005pF

4. Error limit: ±0.03%

5. Loss tangent (D): ≤5×10-4

6. Output mode:  Three-terminal/Four-terminal-pairBNC output

7. Beacon frequency/operating frequency (f): 1,000Hz

8. Maximum operating voltage (U): ≤100V

9. Overall dimension: 310mm×260mm×140mm

Detail

Datasheet


Features

- CH-17T precision standard capacitance box has 1, 2, and 5 alternating step sizes in capacitance change. This capacitance box operates easily and rapidly, and is convenient to carry, with small volume, high performance and light weight.
- CH-17Tprecision capacitance box adopts three-terminal output mode or four-terminal-pair output mode, and realizes wide capacitance range of 1pF~1μF through 2 code switches. The decade readings of any gear within such range have the equivalent high capacitance accuracy and stability (±0.03%). The capacitance box has perfect shielding, with tiny zero capacitance (<0.00005pF), and is superior to the similar products both at home and abroad. The indicated value of the switch is free from the influence of zero capacitance, and the required capacitance can be directly obtained from the indicated value of the switch in the use. It’s not needed to deduct the zero capacitance from each indicated value, and is quite convenient to use.
