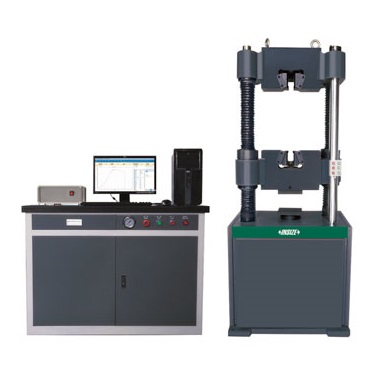

INSIZE UTM-H300B 液压万能试验机 (300KN, 2.5kW)

Max. test force: 300KN

Accuracy: ±1%

Test force measurement range: 2%-100%FS

Resolution of test force measurement: 1/300000 of Max. test force (same resolution all the way)

Deformation measurement device: extensoment

Deformation measurement range: 1%-100%FS

Deformation measurement accuracy: ±1%

Deformation measurement resolution: 1/300000

Displacement accuracy: ±1%

Displacement resolution: 0.01mm

Displacement travel: 200mm

Max tensile space (including piston stroke): 600mm

Max compression space (including piston stroke): 500mm

Transmission mode: Chain drive

Safety protection device: Software protection and mechanical limit protection

Control function: Special software, closed-loop of stress, strain and velocity

Clamping range of round sample: Ø10-32mm

Clamping range of flat sample: 0-15mm

Upper and lower pressure plate size: Ø188mm

Bending branch roll width: 140mm

Total power: 2.5kW

Power supply: 380V, 50Hz

Demension(mm): Host:800x620x1900, Oil source:1140X600x855

Weight: 2T
