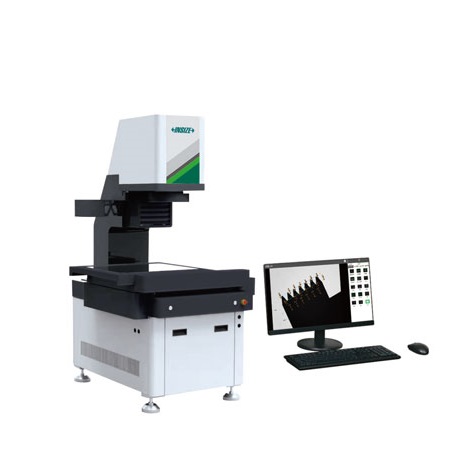

INSIZE QMS-A450 大型快速测量系统

Optical lens: Dual-field dual-telecentric low-distortion lens

Measurement range:

Wide view field: 500x400mm

Small view field: 430*350mm

Travel range(X*Y*Z) : 410x340x250mm

Magnification:

Wide view field: 3.6X

Small view field:  14.2X

Illumination system

Transmission light: telecentric illuminator, green light

Surface light: vertical illuminator

Coaxial light(optional): vertical illuminator, white light

Glass stage size:520x420mm

Max weight of workpiece: 25kg

Measurement time:<2s

Measurement data: 2D measurement

Environmental requirement:20°C + 2°C, 30% -80%RH, vibration: <0.002g, less than 15Hz

Power supply:1200W

Dimension (LxWxH):1060x824x1818mm

Weight: 800kg
