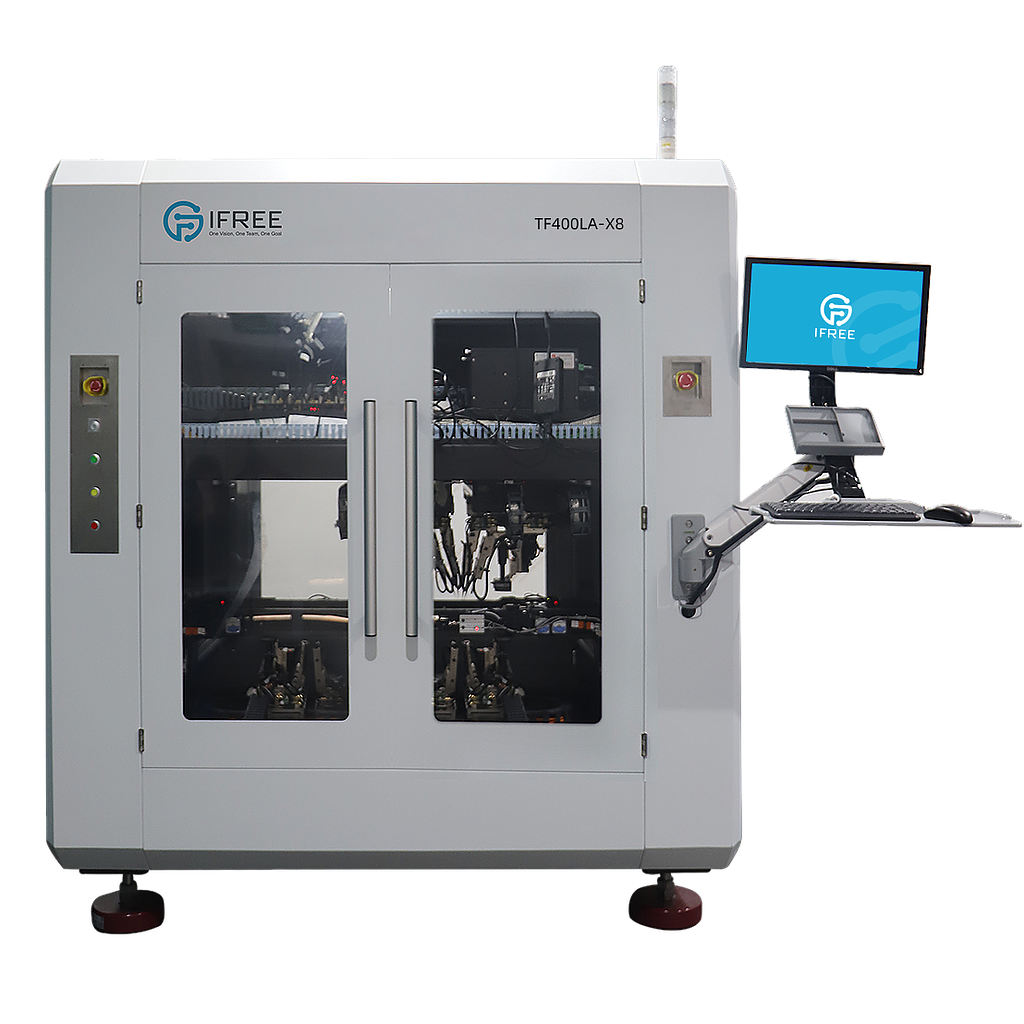

IFREE TF400LA-X8T 双面8飞针测试系统

Key Features




>>Double side flying probes (4 Top + 4 Bottom)
>>Best approaching accuracy to micro-MSD pad (008004)
>>AirTrack floating rail system, non-wear movement
>>Double side test in parallel
>>Support LCRD in-circuit test
>>Support power-up, OBP, Boundary Scan, Open-Pin, LED test …
>>Support external measurement instruments
>>Support test with debug card
>>Enabled with smart repair solutions

Capabilities




In Circuit Test

Optical Check

Node

Resistance

Barcode

5G Test

Functional Test

Open-Pin

Flatness

Check

Boundary

Scan

Power Up

OBP

Infrared Diag

LED Test

Testability

VI Curve

Technical Data




Applicatio

NPI Prototype / Production Test




Probing side

Top & Bottom




Probe qty

8(Top4+Bottom4)




Probe force

80~200g




Speed

70 step/s




Repeated positioning accuracy

±0.0025mm




Acceleration

20g




Max PCB size (L x W)

520*450mm




Footprint (L x W x H)

1900*1550*1950mm
