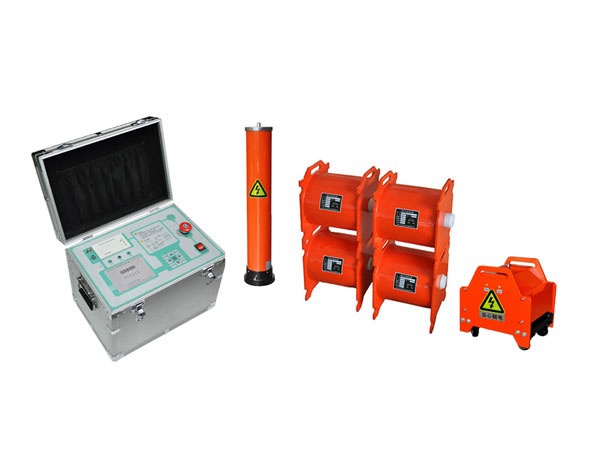

HV HIPOT GDTF-CVT 交流谐振测试机 (适用 CVT)

Temperature: 10 ℃ ~ +40 ℃.

Relative humidity: ≤ 90%.

Frequency: 50Hz.

Input Voltage: AC220 (single phase).

Output voltage waveform distortion: better than 0.5%.

Rated input capacity: 5KVA (2sets reactors), 5KVA (4 sets reactors), 10KVA (6-8 sets reactors).

Rated input voltage: 220V (4 sets reactors).

Rated Input Current: 22.7A/45.4A.

Rated output voltage: 76.2KV (2 sets reactors), 152.4KV (4 sets reactors), 209.6KV (6 sets reactors), 303.1KV (8 setsreactors).

Rated output current: 0.5A/1A

Single reactor withstand voltage: 40kV/60kV

Single reactor capacity: 20kVA/40kVA/60kVA

Single reactor weight: 45kg/60kg
