HUATEC XHV-50 数显触摸屏维氏硬度计






Testing Forces




9.807, 19.61, 24.52, 29.42, 49.03, 98.07, 196.1, 249.2, 490.3



1, 2, 2.5, 3, 5, 10, 20, 30, 50

Carriage Control

Automatic(loading/holding-up of loading /unloading)

Holding Time


Amplification of the microscope

 100X, 200X

Min. graduation value of the test drum wheel



Testing field


Lens/Indenter switch

 With Motorized Turret

Dimension of the X-Y table


Movement field of the X-Y table


Max. Height of the specimen


Max. width of the specimen


Light source

Cold light source


 110V/220V, 60/50HZ


The objective 10x, 20x, 40x can be selected according to user’s requirement

Standard accessories

 Largest test table, “V”Shape test table

10X Digital Micro Lens, Level, Adjustable Screw, Vicker Hardness Block, RS232 Interface Line (supply according to modle of instrument)




 Gross weight: 60Kg          Net weight:50Kg

























 Manufacturer: HUATEC
Origin: China
Warranty: 12 months

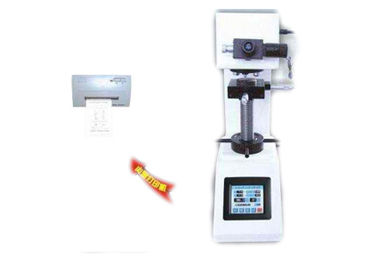

Unique and precise design 170mm 1HV - 2967HV Vickers Hardness Tester XHV-5/10/30/50

Large Image : Unique and precise design 170mm 1HV - 2967HV Vickers Hardness Tester XHV-5/10/30/50

Product Details:

Place of Origin: China
Brand Name: HUATEC
Model Number: XHV-5/10/20/30

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Wooden Case
Delivery Time: 7 days
Payment Terms: TT /LC

Detailed Product Description

Main Features
This Digital Vickers Hardness Tester made with a unique and precise design in the fields of mechanics, optics and light source is able to produce a clearer indentation and hence a more precise measurement. By means of 10x lens, 20x lens or 20x lens and 40x lens, the tester has a wider measurement field and broader usage range. The set of lens (2 pieces lens ) can be selected according to the user’s requirement. With an automatically turning device for indenter and objectives ( the automatically turning turret ) , the operation has become easier; and with a thread interface, it can be linked to a digital camera and a CCD Vide-camrea as well as video measuring devices and indentation automatically meausring device without switching optical path. It is the first tester that adopted the touch and color LCD screen, thus making the operation more humanized. The tester has such features as the direct reading of the measurements, the easy change of the hardness scale, the reservation of the data, the priting and linkage with RS232 interface. By means of closed - circuit system for control , CPU controls testing force to load; dwell and unload, the sensor feedback information, therefore the lost of testing force value can be automatically compensated during testing and hence the testing force more accuracy. The instrument represents today’s world advanced level among the products of the same kind in

Usage Range

 ● Ferrous metals, non-ferrous metals, IC thin section,  coating,  ply-metals;
 ● Glass, ceramics, agate, precious stone, thin plastic sections, etc.
 ● Hardness testing such as that on the depth and the trapezium of the carbonized layers and quenched layers.
