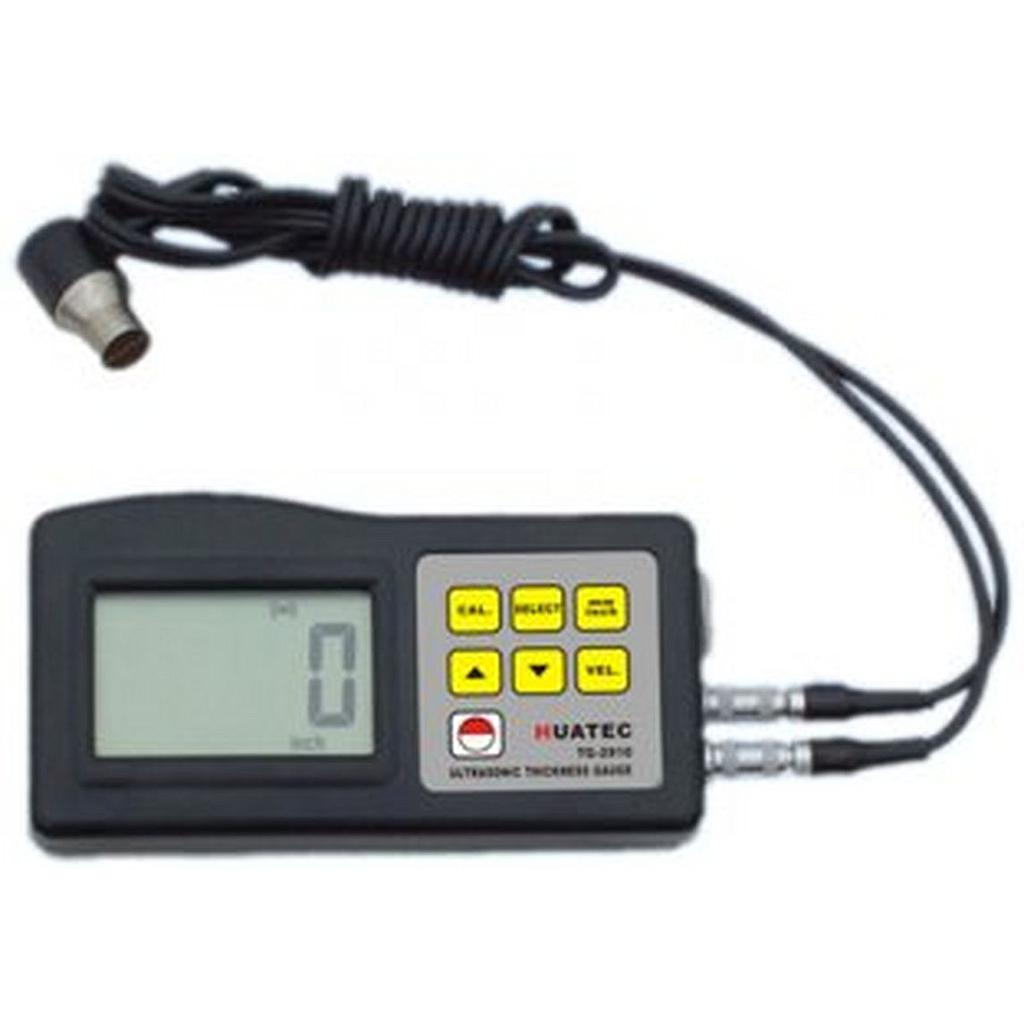

HUATEC TG-2910 超声波测厚仪

Ultrasonic Thickness Gauge TG-2910 can be used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. In industries of petroleum, shipbuilding, power station and machine manufacturing.


Measuring range (metric/imperial): 1.2-225mm, 0.05-9inch

Operating principle: ULTRASONIC

Materials measured: any hard materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron and other materials

Sound velocity: 500-9000m/s

Lower limit steel pipes: ф15x2.0mm, ф20x3.0mm determined by the transducer

Calibration block: included

Resolution: 0.01mm

Accuracy: ±(0.5%n+0.1)

Power supply: 4x1.5V AA(UM-3)battery

Batteryindicator: low battery indicator

Operating conditions:0-+450 C ≤90%RH

Dimensions: 120x62x30mm

Weight: 164g (not including battery)

 Standard Delivery: Main unit, 5M Φ8 Transducer, Couplant  bottle, Carrying case, Instruction manual


Optional Accessories

-          6M Φ6mm thin material probe: measuring range (steel): 1-50mm

           Operating temperature:-10 to +60oC

-          5M Φ12mm high temperature probe: measuring range (steel):4-100mm

           Operating temperature:-10 to+300 oC

-          Cable and Software for RS232C interface
