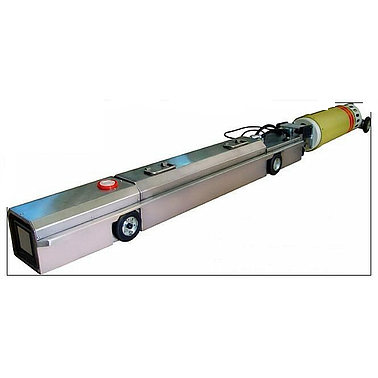

Huatec HXPC-100A X射线管道巡洋舰(Φ800-Φ1500mm,1.5KW)
制造商: HUATEC Model: HXPC-100A - 报价要求
- 联系
Specification
- Pipe diameter detecting range: Φ800—Φ1500mm
- Total weight: 140KG
- Crawler length: 2200mm
- Creeping speed:15M/min
- Creeping distance:2KM
- Locating error: ±5mm
- Max.output voltage:300Kv
- Max.outout current: 3mA
- Climbing ability:40°
- Radiation angle:40°
- Output power:1.5KW
- Batteryenergy: 22Ah/120V
- Motor power:300W
- Exposure time: 1s~1hcontinues adjustable
- Exposure voltage:5 selection
- Operation temperature: -30°~ 70°
The crawler include below parts as standard accessories:
- Lead acid pile: 110V(22Ah)
- X-ray machine: 250KV/5mA
- Remote controller (Electro magnetic induction type, no source)
