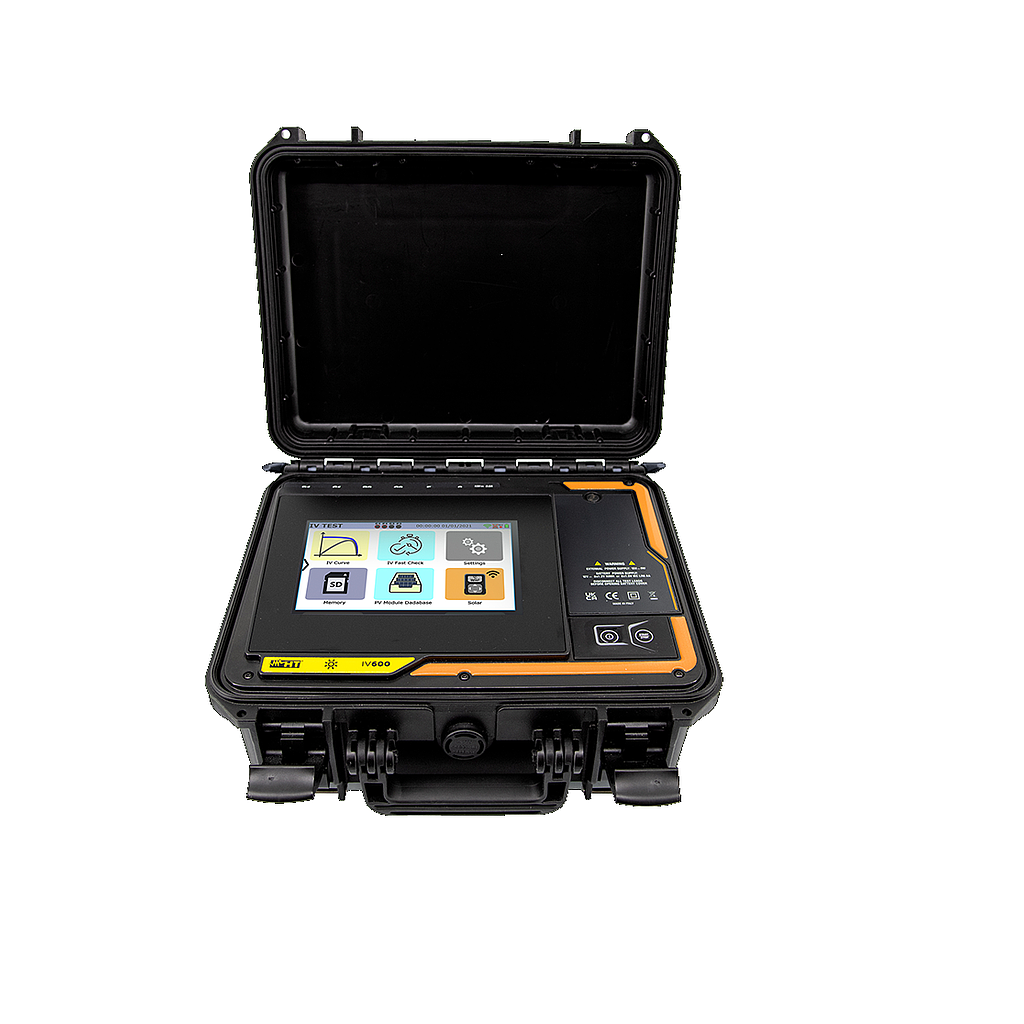

HT IV600 I-V曲线示踪剂 (1500V; 40A, max 42Kw)

I-V curve tracing of PV modules and strings: 1500V/40A max 42Kw

Open circuit voltage Voc of PV modules and strings: 1500V

Short circuit current Isc on PV modules and strings: 40A

Quick IVCK test for measuring Voc and Isc on PV modules and strings: 1500V/40A

Use of SOLAR-03 remote unit with Bluetooth connection

Measurement of direct (front side) irradiation with reference cell: with SOLAR03 remote unit (standard accessory)

Measurement of albedo (back side irradiation) with up to 2 reference cells: with SOLAR03 remote unit (standard accessory)

Temperature measurement of cell and environment: with SOLAR03 remote unit (standard accessory)

BMS (Battery Management System) to recover testing energy and recharge the batteries

Rechargeable or alkaline AA battery powered

Mains power supply and battery charger

PV power supply: via the measuring inputs

Seamless measuring mode to start the curve tracing automatically

Measurement category: CAT III 1500VDC, max 1500VDC among inputs

Customizable PV module database: > 40000 internal memory

Backlit LCD color display with touchscreen

Intuitive icon menu

Display rotation to use the instrument upside down

Internal memory: 9999 I-V curves

External memory: microSD

PC interface with software for Windows and Mac

Integrated WiFi for connection to smartphones and tablets

Auto power off

Help on line on the display

Size (LxWx H) (mm): 335 x 289 x 155

Weight in kg (batteries included): 6

Guidelines

 CE MARK

 EMC 2014/30/EU

 EMC: IEC/EN61326

 IEC/EN60891

 IEC/EN61010-1

 IEC/EN61187

 LVD 2014/35/EU
