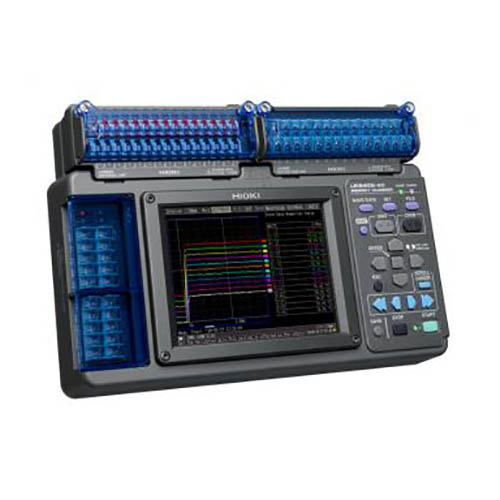

Hioki LR8400-93 太阳能效率记录器(2000A AC / DC)

SPECIFICATIONS
- Input(Fixed channels):
   + CH1: Voltage measurement mode, 1V f.s, 1,000 V
   + CH2: Current measurement mode, 1V f.s, 1,000 A
   + CH3: Insolation measurement mode, 20mV f.s, 140kW/m2
   + CH4: Panel temperature measurement mode
- Expansion channel settings:
   + CH5-CH11: Select as voltage, thermocouple, clamp (2000A, 200A, 100A, 20A, 10A)
   + CH12-CH15: Can not use in PV mode
- Equation (Fixed channels):
   + W1: Power(kW) = Voltage(CH1-1)*Current(CH1-2)
   + W2: Power integration(kWh) = Voltage*Current*time
   + W3: Estimated power(kW)
   + W4: Estimated integration(kWh)
   + W5: AC estimated power (kW)
   + W6: AC estimated integration(kWh)
   + W7: Estimated power approximation rate (%)
- Display:
   + PV Wave + Value, PV Wave + Crsr, Gauge + PV Wave
   + PV Value, Estimate Power, AC Estimate (reference values)
- Other specifications:
   + Functionality is so as LR8400-20 when PV mode is OFF
- The warranty period: 12 month
Details



Input
(Fixed channels)
(Automatic setting of conversion ratio)
[unit1-ch1] Voltage measurement mode, 1 V f.s., 1,000 V conversion ratio
[unit1-ch2] Current measurement mode, 1 V f.s., 1,000 A conversion ratio
[unit1-ch3] Insolation measurement mode, 20 mV f.s., 140 kW/m2 conversion ratio
[unit1-ch4] Panel temperature measurement mode, K thermocouple 100°C f.s., 1°C conversion ratio
Expansion channel settings [unit1-ch5] to [unit1-ch11] Select and add as voltage, thermocouple, or clamp (2,000 A, 200 A, 100 A, 20 A, 10 A).
*[unit1-ch12] to [unit1-ch15] and [unit2-ch1] to [unit2-ch15] cannot be used in PV mode.
Equations
(Fixed channels)
(Automatic setting of equation)
[W1] Power (kW) = Voltage (Ch. 1-1) × current (Ch. 1-2)
[W2] Power integration (kWh) = Voltage (Ch. 1-1) × current (Ch. 1-2) × measurement time (h)
[W3] Estimated power (kW) = Insolation strength (Ch. 1-3) / Gs (standard test condition of 1 kW/m2) × (1 + temperature loss*1) × (1 - coefficient for other losses) × photovoltaic cell rated output (kW)
[W4] Estimated integration (kWh) = Insolation strength (Ch. 1-3) / Gs (standard test condition of 1 kW/m2) × (1 + temperature loss*1) × (1 - coefficient for other losses) × photovoltaic cell rated output (kW) × measurement time (h) *1 Temperature loss = Photovoltaic cell maximum output temperature coefficient × (panel temperature (Ch. 1-4) - 25) / 100
[W5] AC estimated power (kW) = Estimated power (w3) × power conditioner conversion efficiency (reference value)
[W6] AC estimated integration (kWh) = Estimated energy (w4) × power conditioner conversion efficiency (reference value)
[W7] Estimated power approximation rate (%) = Energy (w2) / estimated energy (w4)
Display PV Wave + Value, PV Wave + Crsr, Gauge + PV Wave, PV Value, Estimate Power, AC Estimate (reference values)
Other specifications Functionality is identical to that of the LR8400-20 when PV mode is OFF.
