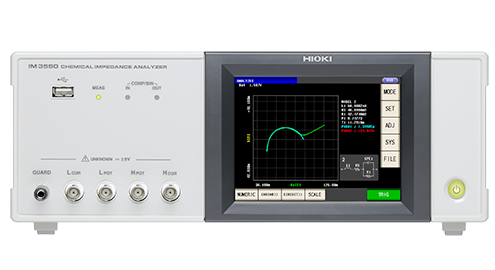

Hioki IM3590 化学阻抗分析仪

SPECIFICTIONS
- Measurement modes:
   + LCR mode, Continuous measurement mode (LCR mode / Analyzer mode)
   + Analyzer mode (Sweeps with measurement frequency and measurement level
   + Temperature characteristics, equivalent circuit analysis)
- Measurement parameters:
   + Z, Y, θ, Rs (ESR), Rp, Rdc (DC resistance)
   + X, G, B, Cs, Cp, Ls, Lp, D (tanδ), Q, T, σ (conductivity)
   + ε (dielectric constant)
- Measurement range:
   + 100 mΩ to 100 MΩ, 10 ranges
- Display range:
   + Z, Y, Rs, Rp, Rdc, X, G, B, Ls, Lp, Cs, Cp, σ, ε : ±(0.000000 [unit] to 9.999999G [unit], Absolute value display for Z and Y only
   + θ : ±(0.000° to 999.999°), D : ±(0.000000 to 9.999999)
   + Q : ±(0.00 to 99999.99), Δ % : ±(0.0000% to 999.9999%)
   + T : -10.0°C to 99.9°C
- Basic accuracy:    Z : ±0.05%rdg. θ: ±0.03°
- Measurement frequency: 1 mHz to 200 kHz (1 mHz to 10 Hz steps)
- Measurement signal level:
   + Normal mode:
      _ V mode/CV mode: 5 mV to 5 Vrms, 1 mVrms steps
      _ CC mode: 10 μA to 50 mArms, 10 μArms steps
   + Low impedance high accuracy mode:
      _ V mode/CV mode: 5 mV to 2.5 Vrms, 1 mVrms steps
      _ CC mode:10 μA to 100 mArms, 10 μArms steps
- Output impedance:
   + Normal mode: 100 Ω
   + Low impedance high accuracy mode: 25 Ω
- Display: 5.7-inch color TFT, display can be set to ON/OFF
- Measurement time: 2 ms (1 kHz, FAST, display OFF, representative value)
- Functions:
   + DC bias measurement, DC resistance temperature compensation (converted reference temperature is displayed)
   + Temperature measurement, Battery mesurement (Automatic DC biasing system)
   + Comparator, BIN measurement (classification), Panel loading/saving, Memory function
- Interface: EXT I/O (Handler), USB communication (high-speed), USB memory Optional: Choose 1 from RS-232C, GP-IB, or LAN
- Power supply: 100 to 240 V AC, 50/60 Hz, 50 VA max.
- Dimensions, mass: 330 mm (12.99 in) W × 119 mm (4.69 in) H × 168 mm (6.61 in) D, 3.1 kg (109.3 oz)
- Supplied accessories:    Power cord ×1, Instruction Manual ×1, CD-R (Communication Instruction Manual and Sample Software [Communications Control, Accuracy Calculation, and Screen Capture Functionality] ) ×1
- The warranty period: 12 month

Details
Measurement modes LCR mode, Continuous measurement mode (LCR mode / Analyzer mode), Analyzer mode (Sweeps with measurement frequency and measurement level, temperature characteristics, equivalent circuit analysis)
Measurement parameters Z, Y, θ, Rs (ESR), Rp, Rdc (DC resistance), X, G, B, Cs, Cp, Ls, Lp, D (tanδ), Q, T, σ (conductivity), ε (dielectric constant)
Measurement range 100 mΩ to 100 MΩ, 10 ranges (All parameters are determined according to Z)
Display range Z, Y, Rs, Rp, Rdc, X, G, B, Ls, Lp, Cs, Cp, σ, ε : ±(0.000000 [unit] to 9.999999G [unit], Absolute value display for Z and Y only
θ : ±(0.000° to 999.999°), D : ±(0.000000 to 9.999999)
Q : ±(0.00 to 99999.99), Δ % : ±(0.0000% to 999.9999%)
T : -10.0°C to 99.9°C
Basic accuracy Z : ±0.05%rdg. θ: ±0.03°
Measurement frequency 1 mHz to 200 kHz (1 mHz to 10 Hz steps)
Measurement signal level Normal mode:
V mode/CV mode: 5 mV to 5 Vrms, 1 mVrms steps
CC mode: 10 μA to 50 mArms, 10 μArms steps
Low impedance high accuracy mode:
V mode/CV mode: 5 mV to 2.5 Vrms, 1 mVrms steps
CC mode:10 μA to 100 mArms, 10 μArms steps
Output impedance Normal mode: 100 Ω
Low impedance high accuracy mode: 25 Ω
Display 5.7-inch color TFT, display can be set to ON/OFF
Measurement time 2 ms (1 kHz, FAST, display OFF, representative value)
Functions DC bias measurement, DC resistance temperature compensation (converted reference temperature is displayed), Temperature measurement, Battery mesurement (Automatic DC biasing system), Comparator, BIN measurement (classification), Panel loading/saving, Memory function
Interface EXT I/O (Handler), USB communication (high-speed), USB memory Optional: Choose 1 from RS-232C, GP-IB, or LAN
Power supply 100 to 240 V AC, 50/60 Hz, 50 VA max.
Dimensions, mass 330 mm (12.99 in) W × 119 mm (4.69 in) H × 168 mm (6.61 in) D, 3.1 kg (109.3 oz)
Supplied accessories Power cord ×1, Instruction Manual ×1, CD-R (Communication Instruction Manual and Sample Software [Communications Control, Accuracy Calculation, and Screen Capture Functionality] ) ×1

Catalog

pdficon CHEMICAL IMPEDANCE ANALYZER IM3590
product catalog.pdf (1.65 MB) (2012-10-28 updated)
