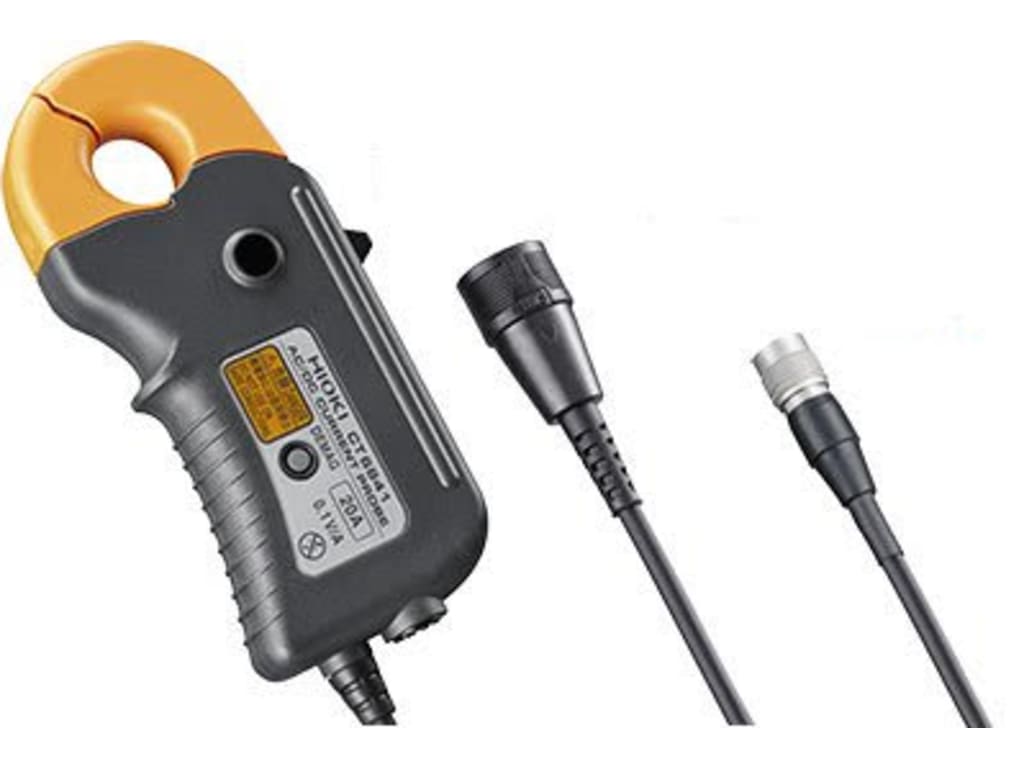

Hioki CT6841 AC/DC电流探头(20A)
制造商: HIOKI Model: CT6841 - 报价要求
- 联系
- Rated current: 20 A AC/DC
- Max. allowable input: 40 A rms (requires derating)
- Frequency characteristics: Amplitude: DC to 1 MHz
- Phase: DC to 300 kHz
- Amplitude and Phase accuracy: DC ±0.3 % rdg. ±0.05 % f.s. (Phase: Not defined)
DC < f ≤ 100 Hz ±0.3 % rdg. ±0.01 % f.s. (Phase: ±0.1 deg)
Defined to 1 MHz
- Power consumption: 5 VA max. (at 20 A/55 Hz, ±12 V power requirement)
- Output voltage : 0.1 V/A (CT6841), 0.01 V/A (CT6843) (voltage output with the Sensor Unit 9555-10, use with a device having a 1 MΩ input resistance or higher)
- Core diameter: φ 20 mm (0.79 in)
- Operating temperature, humidity: -40 °C to +85 °C (-40 °F to 185 °F), 80% rh or less (with no condensation)
- Power supply: DC ±11 V to ±15 V (Power suppled via the 9555-10, 9555-10 supports 100 to 240 V AC)
- Dimensions and mass: 153 mm (6.02 in)W × 67 mm (2.64 in)H × 25 mm (0.98 in)D, cord length: 3 m (9.84 ft), 350 g (12.3 oz)
- Accessories: Instruction manual ×1, Mark bands ×6, Carrying Case ×1
- Rated current: 20 A AC/DC
- Max. allowable input: 40 A rms (requires derating)
- Frequency characteristics: Amplitude: DC to 1 MHz
- Phase: DC to 300 kHz
- Amplitude and Phase accuracy: DC ±0.3 % rdg. ±0.05 % f.s. (Phase: Not defined)
DC < f ≤ 100 Hz ±0.3 % rdg. ±0.01 % f.s. (Phase: ±0.1 deg)
Defined to 1 MHz
- Power consumption: 5 VA max. (at 20 A/55 Hz, ±12 V power requirement)
- Output voltage : 0.1 V/A (CT6841), 0.01 V/A (CT6843) (voltage output with the Sensor Unit 9555-10, use with a device having a 1 MΩ input resistance or higher)
- Core diameter: φ 20 mm (0.79 in)
- Operating temperature, humidity: -40 °C to +85 °C (-40 °F to 185 °F), 80% rh or less (with no condensation)
- Power supply: DC ±11 V to ±15 V (Power suppled via the 9555-10, 9555-10 supports 100 to 240 V AC)
- Dimensions and mass: 153 mm (6.02 in)W × 67 mm (2.64 in)H × 25 mm (0.98 in)D, cord length: 3 m (9.84 ft), 350 g (12.3 oz)
- Accessories: Instruction manual ×1, Mark bands ×6, Carrying Case ×1
