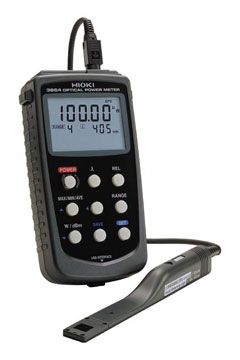

Hioki 3664 光功率计

Optical power measurement: W, dBm
Measurement display unit: nW, mW, mW, dBm, dB
Range setting: Auto
Accuracy: ±0.7%
Analog output: ~1V
Output resistance: 50Ω
Output connector: ø3.5 mini jack
Auxiliary functions: Auto power save, Setting backup, Battery check
Power supply: AA (LR6) × 4, AC adapter (9445-02)
Max. rated power: 1.6 VA
Continuous battery operation: ~60h
Product Net Weight: 270g
Product Size: 85*160*35mm
The warranty period: 12 month


Optical power measurement W, dBm
Range setting Auto (Manual setting available)
Accuracy ±0.7% (±5% in combination with the optional sensor)
Wavelength sensitivity compensation Can be set for every 1nm.
Automatic compensation for the sensor’s sensitivity
Max. 10 wavelengths preset (including initial value for a sensor)
Scaling Can be set for each wavelength.
Relative measurement Display the relative value to the measured value or set value.
(Displayed value = Measured value – Reference value)
  • Reference value can be set from the measured value or manual input.
  • Settable range: 0.001nW to 1.9999W (-90.00dBm to 33.00dBm)
Display 4-1/2 digit, (19999 max.), Display resolution: 0.01dBm / 0.01dB
Measurement display unit nW, mW, mW, dBm, dB
Wavelength display 4 digit, Unit: nm
Display update rate 330ms approx.
MAX/MIN display Maximum and minimum value display while measurement
Average display Display the moving average value.
Averaging times: 2 to 100
Analog output 1V approx. when the sensor calibration point input
Output resistance 50Ω
Output connector ø3.5 mini jack
Interface Output measurement value and remote control
Auxiliary functions Auto power save, Setting backup, Battery check
Safety EN61010-1: 2001 Pollution degree 2
Power supply AA (LR6) × 4, AC adapter (9445-02
Max. rated power 1.6VA
Continuous battery operation 60 hours approx. (continuous use with the 9742 at calibration point input)
Dimensions and weight 85(W) × 160(H) × 35(D) mm, 270g (excluding batteries)
