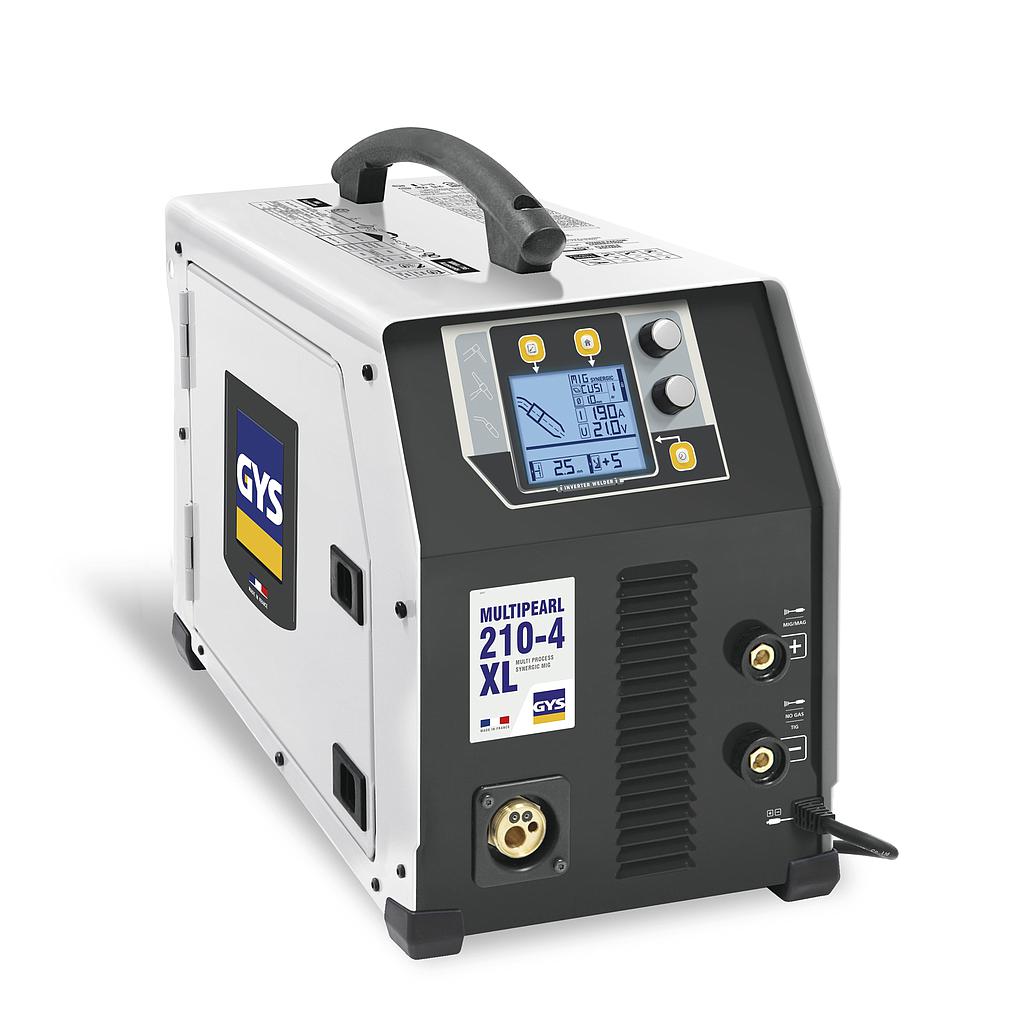

GYS MULTIPEARL 210-4XL MMA, TIG DC, MIG/MAG 焊接机 (230V, 1ph, 20-200A)

4 in 1, the MULTIPEARL 210-4 XL, is a multi-process power source capable of performing MIG/MAG (with or without gas), TIG DC and MMA welding with high precision It features 9 welding synergies to enable welding in all positions. Versatile, but also equipped with a single-phase power supply with PFC/FV technology, it is the perfect tool in the workshop or on site.

3 WELDING PROCESSES

+ MIG-MAG

   - 2 roller motor: @ 100 and 200 mm reels.

   - Adjustable manually or synergistically.

   - SPOT and DELAY functions available.

   - Can weld sheets from 0.6 to 6 mm thick.

+ TIG

   - TIG DC welding and TIG Lift ignition with the TIG EURO torch.

   - Adjustable Post Gas and Downslope (arc downslope).

+ MMA

   - Welds different types of coated electrodes up to a 5mm (rutile, basic, stainless steel, steel, cast iron).

   - Adjustable Hot Start (0 to 100%): facilitates ignition and can be adjusted according to the type of metal.

   - Arc Force adjustable (0 to 100%): regulates the arc length deviations.

   - Antisticking: reduces the risks of the electrode sticking if it comes into contact with the workpiece

MIG-MAG SYNERGIES

• Automatic calculation of wire speed and tension according to:

   - the type and diameter of the wire:

   -  the thickness to be welded;

   - the gas used;

   - the welding position.

• Manual setting possible: wire speed and arc length.

Specifications:

Welding current: 230 V, 1 ph, 50/60 Hz

Power supply: 16 A

Welding current range: (MIG/MAG, TIG, MMA): 20-200 A

Duty cycle (environment temp. at 40°C):

   - MIG/MAG:

        Imax 200 A @ 20%

        @ 60%: 130 A / 20.5 V

        @ 100%: 110 A / 19.5 V

   - TIG:

        Imax 200 A @ 22%

        @ 60%: 135 A / 15.4 V

        @ 100%: 115 A / 14.6 V

   - MMA:

        Imax 200 A @ 18%

        @ 60%: 110 A / 24.4 V

        @ 100%: 90 A / 23.6 V

Wire feed speed: 1-15m/min, 4 rollers (2 motor)

Supported wire reels: Ø200-300 mm

Wire diameter:

            + Steel: 0.6 - 1 mm

            + Inox: 0.8 - 1 mm

            + Aluminum: 0.8 - 1 mm

            + Cored wire: 0.9 - 1.2 mm

No-load voltage: 75/76 V

Protection level: IP 21

Dimensions (L x w x h): 27.5 x 55 x 44 cm

Weight: 20 kg

Standard: IEC 60974-1/5/10 A

Original equipment (roller): 0.6/0.8-B (steel, inox)

Included accessories: Torch TOPARC MIG 250A - 3 m + Electrode holder 2 m + Earth cable 2.5 m
