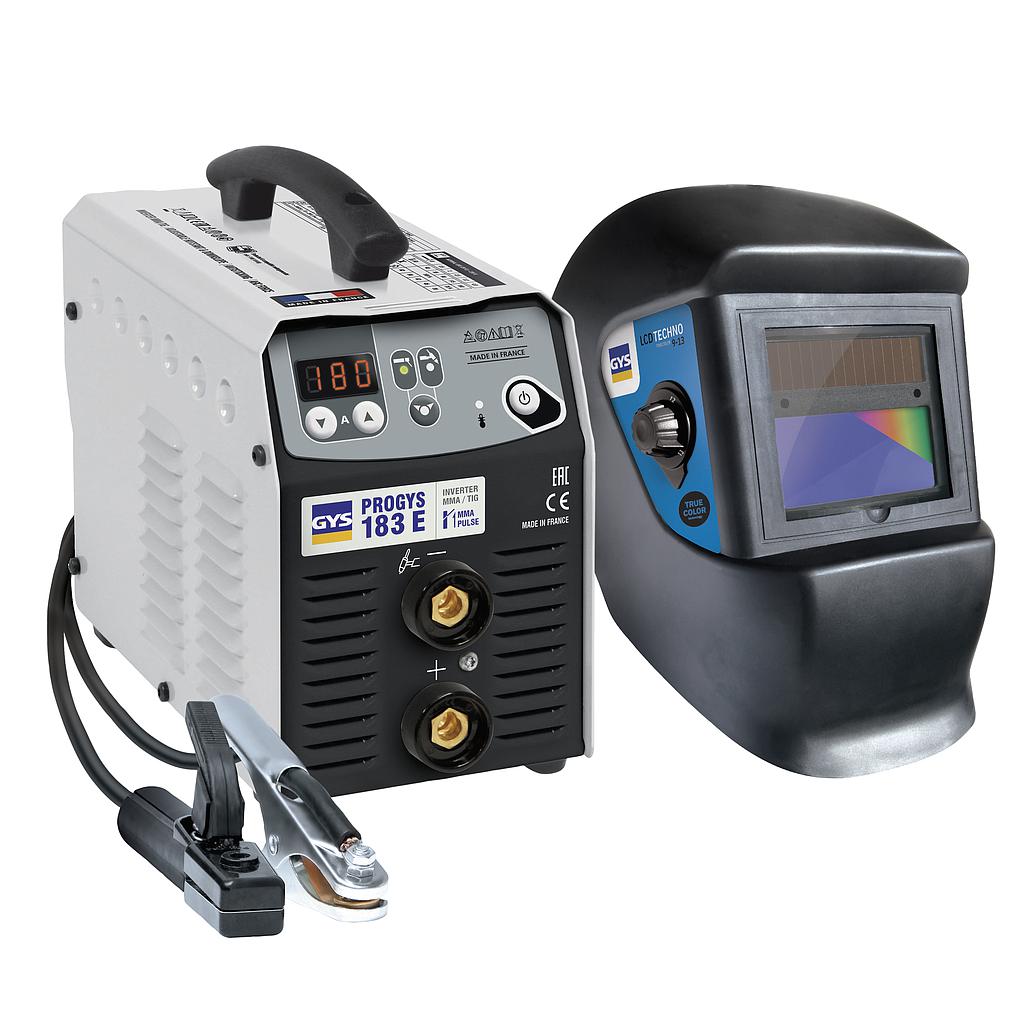

GYS BUNDLE PROGYS 183E MMA 和 TIG 焊接机 (1 pha; 230V; 10-180A; with welding Helmet)

Equipped with the latest electronic technology and designed to be robust and durable, the PROGYS 183 E will deliver professional welding results on steel, cast iron and stainless steel up to 10 mm. It is designed to perform 3 types of welding process MMA, Pulse MMA and LIFT TIG. The very soft fusion point ensures a perfect finish.

- 3 WELDING MODES

■ MMA : Weld with great facility most types of coated electrodes : steel (rutile and basic), stainless steel and cast-iron (up to Ø 4.0 mm).

■ MMA PULSE : For ascending vertical welding.

■ TIG Lift : For precise work on thin sheets.

- WELDING FEATURES:

+ Hot Start (adjustable) : Adjustable higher amperage when the electrode first  comes into contact with the metal. Prevents the electrode  from sticking when the metal or the electrode are cold.

+ Arc Force : Increases the amperage when required to keep the arc stable.

+ Antisticking : Prevents the electrode from sticking when in contact with the metal.

+ MMA Pulse (adjustable) : Ideal for ascending vertical welding. Optional frequency adjustment.

+ TIG Lift (adjustable) :

      Easier start to ensure perfect quality welding bead.

      A simple movement of the wrist starts the automatic downslope to ensure a smooth and clean welding finish.

Specifications:

Welding current: 230 V, 1 ph, 50/60 Hz

Power supply: 16 A

Welding current range (MMA): 10-180 A

Welding current range (TIG): 10-180 A

Maximum welding current: 180 A

No-load voltage: 72.9 V

Duty cycle (environment temperature at 40°C):

- MMA:

     180 A/27.2 V @ 18%

     110 A/24.4 V @ 60%

     85 A/23.4 V @ 100%

- TIG:

     180 A/17.2 V @ 25%

     135 A/15.4 V @ 60%

     100 A/14 V @ 100%

Dimensions (L x w x h): 14x19x38 cm

Weight: 5 kg

Protection class: IP21

Standard: IEC 60974-1/10 A

Included accessories:

- Earth cable (1.6 m / ø 16 mm²)

- Electrode holder (2 m / ø 16 mm²)

- LCD 9/13 TRUE COLOR welding Helmet
