GYS MAGYS 500-WS MIG/MAG 焊接机 (400V, 3ph, 40-450A, steel torch 4m)

The MAGYS 500 GR with its wire feeder is a “synergic” 3-Phase MIG/MAG with an air cooled system. Its heavy duty design and high duty cycle make it ideal for industrial environments welding steel, stainless-steel and aluminium. The cables, available either of 5 to 10 meters, are perfectly suited for intensive work up to ø1.6.

4 MODES:

- 2T / 4T

- Spot: Welding with adjustable spot diameter

- Delay: Intermittent welding mode

SYNERGIC OR MANUAL

More than 1000 parameters managed by micro processor.

- Synergic mode: The wire speed parameters can be set up directly and easily for an optimum result by just setting-up:

• The wire type

• The wire diameter

• The power, with its two switches

MAGYS 500 GR will automatically control:

• Optimum wire speed

• The pre-gas / post-gas

• Burn back

- Manual mode: Enables manual control of the wire speed

HEAVY DUTY DESIGN AND ENGINEERING

- Wire feeder and 4 drive rollers

- Robust build to suit industrial requirements

- Gas bottle support up to 10m³ (50l)

- 4 eye bolts for lifting the machine

- Heavy duty reinforced wheels for good mobility

Specifications:

Welding current: 400 V, 3 ph, 50/60 Hz

Power supply: 32 A

Welding current range: 40-450 A

Duty cycle (environment temp. at 40°C):

   350 A / 36.5 V @ 50%

   410 A / 34.5 @ 60%

   320 A / 30 V @ 100%

Wire feeder W5S-4L:

      Welding current: 24 V / 4 A

      Duty cycle (environment temp. at 40°C): 410A@60%; 320A@100%

      Air/Water cooled wire feeder: 4 motored rollers

      Wire feed speed: 1 - 20 m/min

      Supported wire reels: Ø200mm

      Wire diameter:

            + Steel, inox: 0.6 - 1.2 mm

            + Aluminum: 1.0 - 1.2 mm

            + Cored wire: 0.9 - 1.2 mm

      Dimensions (LxWxH): 23 x 32 x 49 cm

      Weight: 15kg

Intergrated cooling unit: 5.5 L

Voltage level: 30

No-load voltage: 18/51 V

Protection level: IP 23

Dimensions (L x w x h): 50 x 105 x 98 cm

Weight: 160 kg

Standard: IEC 60974-1/10 A

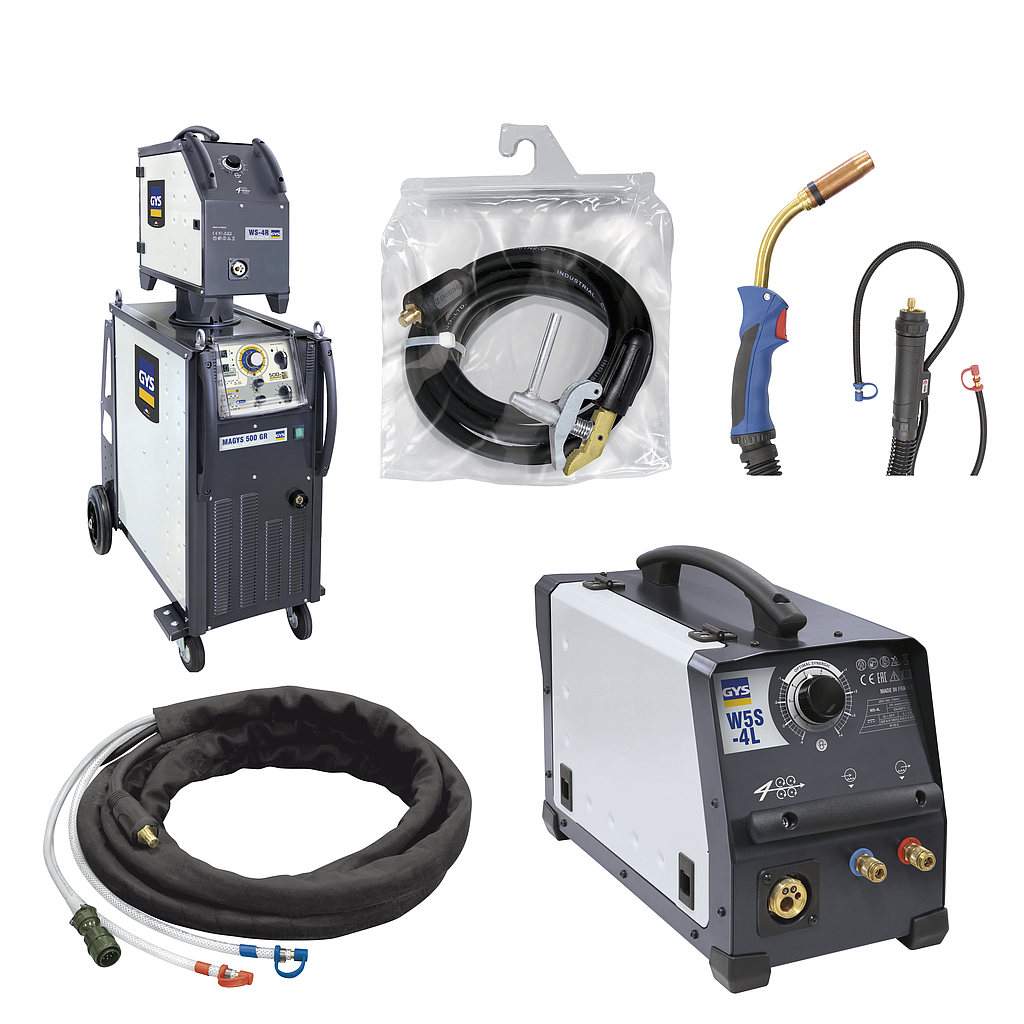

Included accessories:

MIG connection cable 10m- 033658

Aired/Watered cool wire feeder W5S-4L- 032835

Roller type C: original equipment (steel/ inox): Ø1.0/1.2

Earth cable 600 A - 4 m (clamp) - 043831

Torch MIG/MAG GRIP (Steel), 500A-4m- 041004
