GYS BUNDLE PROGYS 180 A MMA 焊接机 (1pha; 230V; 10-180A; With welding helmet)

PROGYS 180A is a powerful Inverter stick welder (MMA) designed for professional use and industrial maintenance on site or in the workshop.

- Easy to carry

- Accurate arc

- Welds any type of electrodes in DC up to Ø 4mm rutile, basic, stainless steel and cast iron

- Can be used on a generator

- Compact and lightweight (5.1 kg)

Stick welding (MMA):

■ Good fusion, for a high quality weld

■ Easy to strike the arc with a powerful Hot Start

■ High duty cycle enabling intensive use on Ø 3.2 mm

■ Ergonomic and lightweight

FEATURES:

HOT START: Increased power at start

ANTI STICKING: Prevents the electrode sticking

ARC FORCE: Instantaneous increase of the current in difficult welding situation

SPECIFICATIONS:

Power supply: 230 V, 1 ph, 50/60 Hz

Fuse: 16 A

Normal current output (MMA): 10-180 A

Maximum welding current: 180 A

No-load voltage: 72.9 V

Duty cycle (environment temperature at 40°C): 110 A/24.8 V @ 60%; 180 A/27.2 V @ 18%; 85 A/23.4 V @ 100%

Dimensions (L x w x h): 28.5x13x23 cm

Weight: 5 kg

Protection class: IP21

Standard: IEC 60974-1/10 A

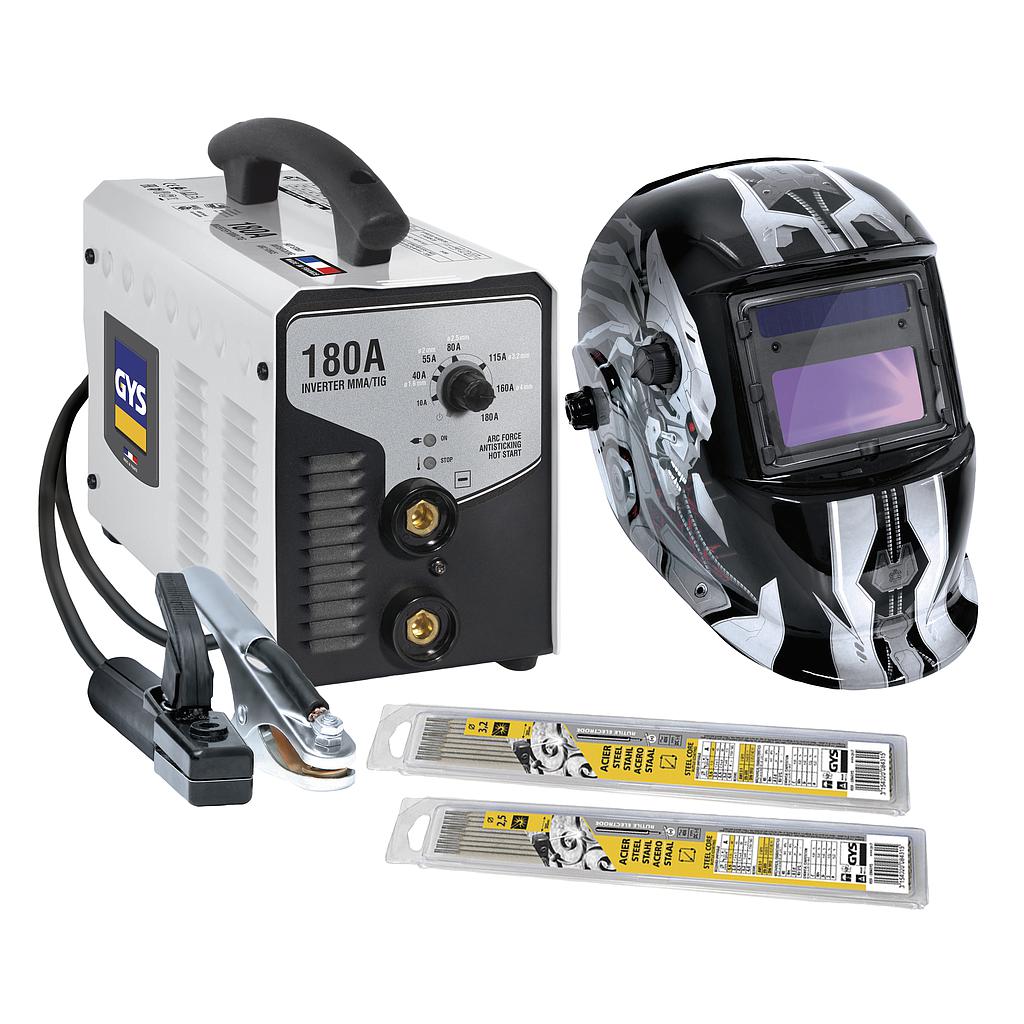

Included accessories:

- Earth clamp (1.60 m - 16 mm²)

- Electrode holder (2 m - 16 mm²)

- LCD MASTER 9/13 G IRON Welding Helmet

- 11 rutile electrodes - steel Ø 2.5 mm

- 9 rutile electrodes - steel Ø 3.2 mm
