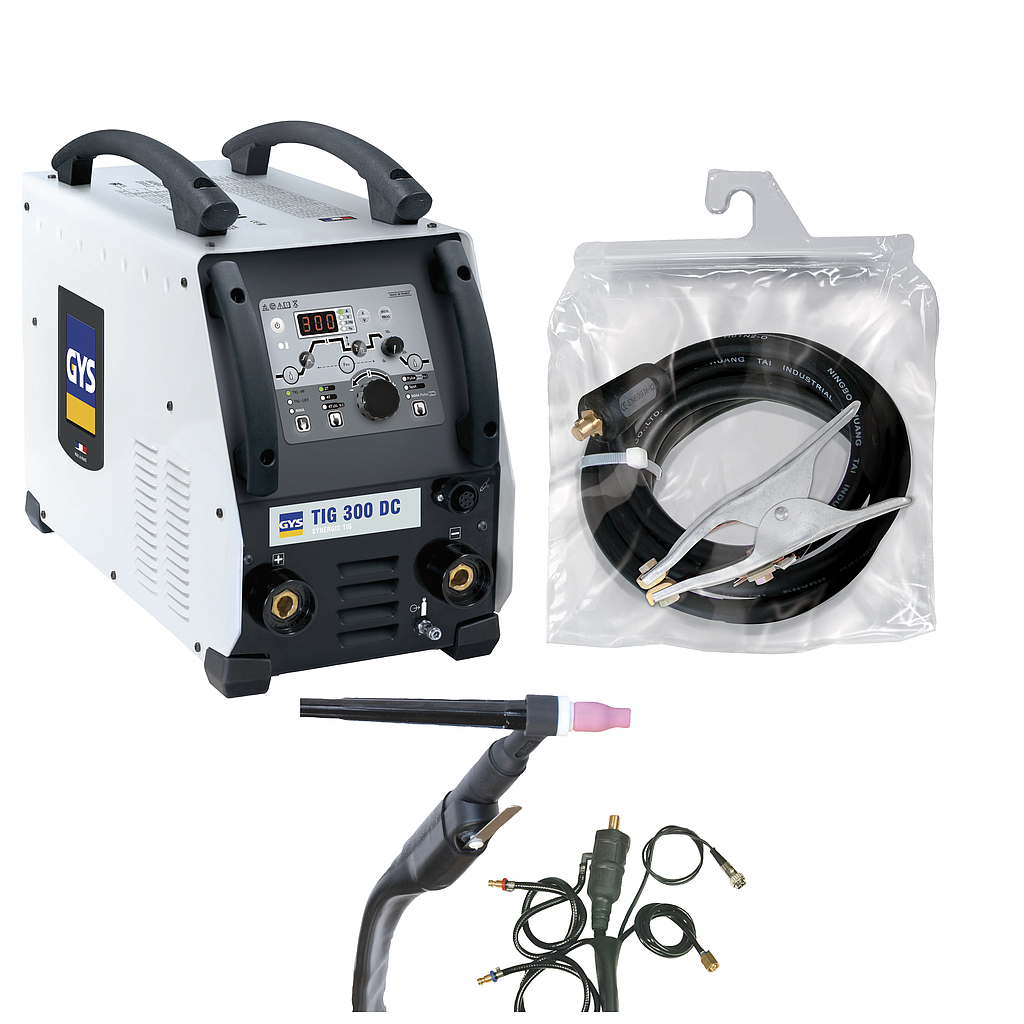

GYS TIG 300 DC TIG (GTAW) 和MMA (SMAW) 焊接机 (400V, 3ph, 300A)

Designed for professionals, the TIG 300 DC is adapted for complex TIG and MMA welding operations. Intuitive, this welder allows you to perform high quality welding operations on soft and stainless steel. Its proven technology provides excellent results to industries (Pipework, petrochemical, boilerwork).

OPTIMISED DC WELDING:

- TIG DC : continuous current for ferrous metals.

- TIG DC Pulsed : limits temperature elevation of the welded pieces.

- SPOT : fast and precise spot welding, ideal before welding thin metal sheets.

- 2 types of start-up : HF (without contact) or LIFT (with contact) for electrosensitive environments.

- 3 trigger modes : 2T, 4T and 4T LOG.

- Automatic detection of the torch : compatible with trigger, double button and potentiometer torches.

- AIP (Adjust Ideal Position) : helps to position the torch before welding (4T & 4T LOG modes).

MMA WELDING

- MMA: Basic rutiles and cellulosic electrodes (up to Ø 5 mm).

- MMA Pulse: developed for welding pipes/tubes as well as upper vertical  welding.

Specifications:

Welding current: 400 V, 3 ph, 50/60 Hz

Power supply: 16A

Welding current range (MMA): 10-250 A

Welding current range (TIG): 5-300 A

Maximum welding current: 300 A

No-load voltage: 90 V

Duty cycle (environment temperature at 40°C):

- TIG

     300 A/22 V @ 35%

     255 A/20.2 V @ 60%

     240 A/19.6 V @ 100%

- MMA

     250 A/30 V @ 30%

     220 A/28.8 V @ 60%

     210 A/28.4 V @ 100%

Dimensions (L x w x h): 40x52x25 cm

Weight: 20 kg

Protection class: IP23

Standard: IEC 60974-1/3/10 A

Included accessories:

TIG Torch GRIP- SR26 DB (046177)

Earth cable 250 A 4 m / 25 mm²- 043794
