GYS TIG 220 AC/DC FV MMA 和 TIG AC/DC焊接机 (230V, 1ph, 220A, Torch TIG GRIP)

Professional, single phase, 220 Amp AC/DC TIG welding machine, suitable for welding most materials including steel, stainless, aluminium and copper. Manufactured in France.

-  A professional interface: ,7’’ TFT display screen and two control knobs make set-up and adjustment of welding parameters easy and intuitive.

Features:

• Flexible Voltage :

 Works on both 110/240V power supplies

• Power Factor Correction (PFC) :

Enables trouble free use on long extension cables and is generator friendly

• Anti-dust corridor :

Fan cooling system stops metallic dust from being blown onto electronic circuit boards protecting against premature board failure

• Pulse mode :

Adjustable pulse frequency, ideal for working on thin material by reducing heat distortion.

• Synergic mode :

Time saving feature, just enter material type, thickness and electrodes size and the machine calculates ideal welding parameters.

• HF and LIFT start options

• Tack spot mode : Fast tack mode with no oxidation

• Integrated Technologies

Specifications:

Welding current: 230 V, 1 ph, 50/60 Hz

Power supply: 16 A

Maximum welding current: 220 A (AC) 220 A (DC)

Welding current range (TIG AC): 10-220 A (230 V)

Welding current range (TIG DC): 5-220 A (230 V)

Welding current range MMA: 10-220 A (230 V)

Duty cycle (environment temperature at 40°C):

- TIG AC:

      220 A/18.8 V @ 40%

      185 A/17.4 V @ 60%

      170 A/16.8 V @ 100%

- TIG DC:

      220 A/18.8 V @ 35%

      175 A/17 V @ 60%

      160 A/16.4 V @ 100%

- MMA:

      220 A/28.8 V @ 25%

      160 A/26.4 V @ 60%

      130 A/25.2 V @ 100%

Dimensions (L x w x h): 25x52x40 cm

Weight: 20 kg

Protection class: IP23

Standard: IEC 60974-1/3/10 A

No-load voltage: 75V

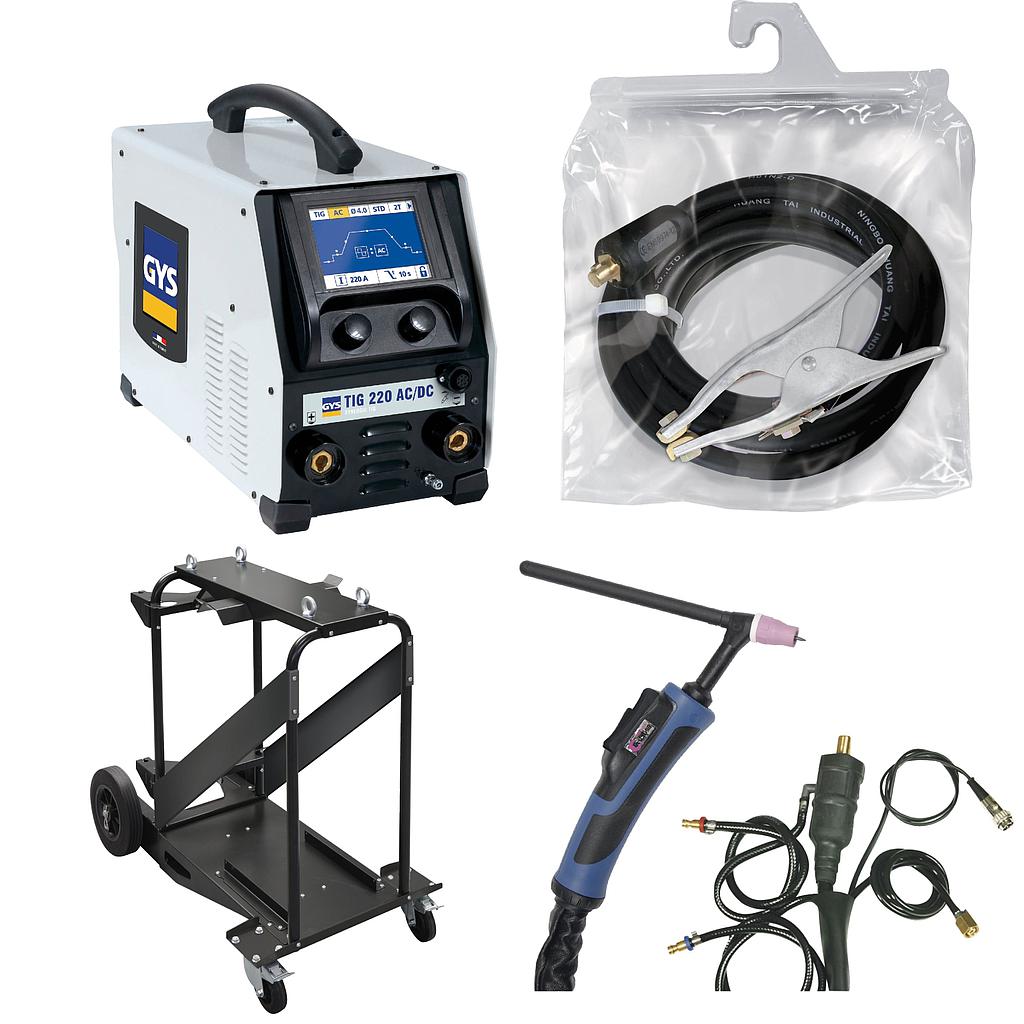

Included accessories:

Torch TIG GRIP SR26 DB - 4 m 046177

Earth cable 250 A 4 m / 25 mm² 043794

Trolley 4m³ 015678
