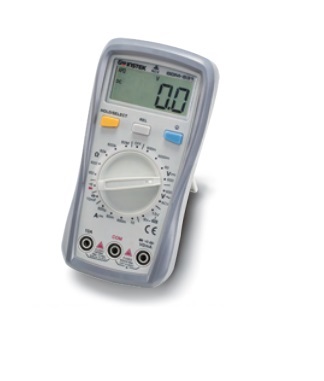

GW INSTEK GDM-531 手持数字万用表

DC VOLTAGE

Range: 600.0mV, 6000mV, 60.00V, 600.0V

Best Accuracy: ±(0.7% rdg + 3 digits)


AC VOLTAGE

Range: 600.0V

Best Accuracy: ; ±(1.2% rdg + 3 digits)

Frequency Response: 40Hz-400Hz

Input Impedance: 10 MΩ


DC CURRENT

Range:  600.0µA, 60.00mA, 600.0mA, 10.00A

Best Accuracy: ±(1.0% rdg + 3 digits)


RESISTANCE

Range: 600.0Ω, 6000Ω, 60.00kΩ, 600.0kΩ, 60.00MΩ

Best Accuracy: ±(0.8% rdg + 2 digits)


CONTINUITY BEEPER

Buzzer sounds if conductance less than 10Ω


DIODE TEST

Open Circuit Voltage: 2.1V (Approx.)


CAPACITANCE

Range: 9.999nF, 99.99nF, 999.9nF, 9.999µF, 99.99µF, 999.9µF, 9.999mF

Best Accuracy: ±(4.0% rdg + 5 digits)


TEMPERATURE

Range: -40ºC ~ 1000ºC / -40ºF ~ 1832ºF


SPECIAL FUNCTION

Display Backlight; NCV Function; Audible /Visual Alarm


LCD DISPLAY

6000 counts


POWER SOURCE

1.5V AAA x 2


DIMENSIONS & WEIGHT

76.5(W) x 155(H) x 49(D) mm, Approx. 255g


ACCESSORIES

Battery, User manual, Test leads
