Load capacity: 15 kg
Shaking platform: 450 x 450 mm
Shaking frequency: 20 - 300 rpm
Shaking amplitude: 30mm
Ambient temperature: +10 °C to +50 °C
Timer: up to 60 minutes or continuous operation
Exterior dimensions (W x D x H): 510 x 625 x 145 mm
Electrical connection: 230 V / 50...60 Hz / 65 W *
Gross weight: 22 kg
Specifications and features

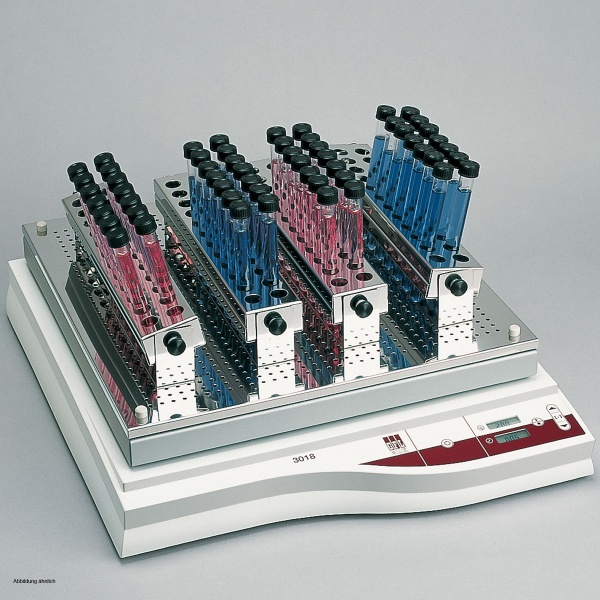

Dependable, long-life Orbital Shaker with a large shaking tray for accomodating heavier loads.
User-friendly microprocessor technique
Excellently applicable for continuous operation.
Universally applicable through the large amplitude, low noise.
Digital shaking frequency readout and setting via LC-display, in steps of 1.0 rpm, gentle start-up.
Remaining time indication through LC display.
RS 232 serial interface for trouble-free data transfer.
Clearly laid out control panel for easy operation.
An a.c. motor with overload protection drives the unit.
Compact, low-wear counterbalanced drive mechanism.
Constant speed, independent of load.
Large shaking platform made of electrolytically galvanised, powder-coated sheet steel, equipped with four support rods with screw-type clamps for secure attachment of accessories.
Special rubber pad ensures a non-slip grip of objects on the shaking tray.
Housing made of high impact strength polystyrene.
Comprehensive range of accessories
Applications: This powerful orbital shaker is preferably used for e. g. analytical or diagnostic applications in the pharmaceutical industry, chemistry, biology, in plant breeding or nutritional industry.
It is well-suited for use in laboratories, incubation and moderating rooms in ambient temperatures between +10 and +50 °C.
