Temperature range: from approx. 5 °C above ambient to +99.9 °C
Capacity: 20 liter
Shaking frequency: 10 - 250 rpm
Shacking amplitude: 14 mm
Working height of bath: 190 mm
Built-in cooling coil
Digital display of shaking frequency and temperature
Max. water level above shaking rack / tray : 105 mm / 90 mm
Inner dimensions (W x D x H): 450 x 300 x 160 mm
Exterior dimensions (W x D x H): 635 x 505 x 400 mm
Electrical connection: 230 V / 50...60 Hz / 1.5 kW
Gross weight: 40 kg
Packing volume: 0.34 m3
Specifications and features
Microprocessor-controlled temperature regulation.
Excellent temperature constancy: ± 0.1 °C temporal at 50 °C.
Optimum temperature distribution throughout the whole bath interior.
Digital temperature readout and setting via LED display, in steps of 0.1 °C.
Digital display for shaking frequency.
Soft-touch keys with characteristic symbols.
Electronic monitoring; in case of fault, cause is reported on display.
Two independently working over-temperature protections.
Maintenance-free and low-wear shaking mechanism, continuously adjustable electronic speed control, gentle start-up.
Constant speed, independent of load.
Easily removable shaking rack.
Thermal insulating and double-walled arched lid prevents twisting and dropping back of condensed water into the test tubes.
Bath interior and shaking rack made of stainless steel.
Corrosion proof exterior housing made of electrolytically galvanised sheet steel, powder-coated.
Built-in cooling coil for applications below ambient temperature as a standard scope of supply.
Drain cock at the back of the bath.

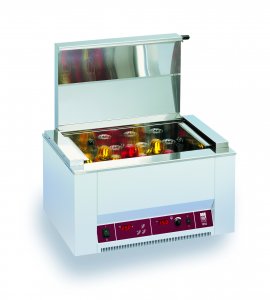

Applications: GFL Shaking Water Baths are particularly used whenever exactly reproducible temperatures are required for shaking tasks. Their scope of applications comprises incubations, fermentations, homogenisations, chemical and biochemical reactions, enzyme and tissue studies.
