Temperature range: from approx. 5 °C above ambient to +99.9 °C
Shaking frequency: 2 - 50 rpm
Shacking amplitude: 22 mm
Working height of bath: 80 mm
Inner dimensions (W x D x H): 175 x 175 x 100 mm
Exterior dimensions (W x D x H): 625 x 556 x 270 mm
Electrical connection: 230 V / 50...60 Hz / 1.3 kW
Gross weight: 36 kg
Packing volume: 0.34 m3
Specifications and features

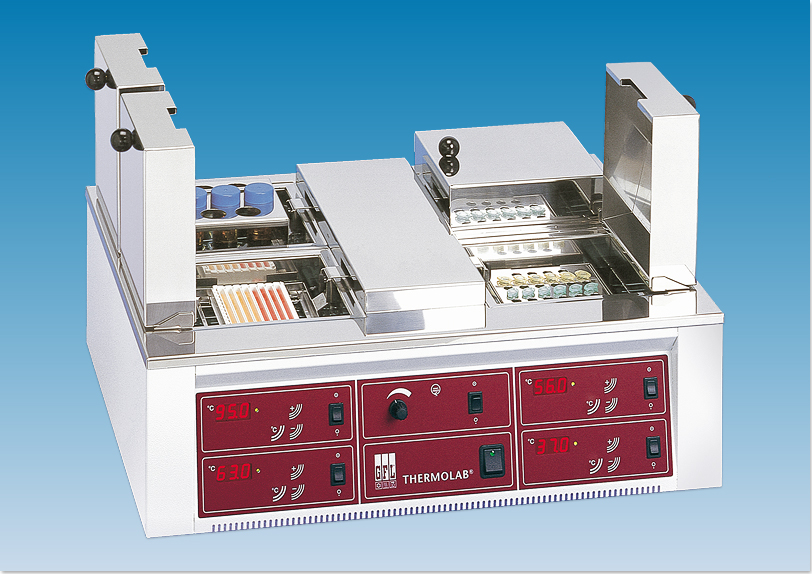

Quadrothermal shaking water bath with four separate, independently heatable basins.
Microprocessor-controlled temperature regulation.
Excellent temperature constancy: ± 0.1 °C temporal at 50 °C.
Optimum temperature distribution throughout the whole bath interior.
Digital temperature readout and setting via LED display, in steps of 0.1 °C.
Soft-touch keys with characteristic symbols.
Electronic monitoring; in case of fault, cause is reported on display.
Two independently working over-temperature protections.
Maintenance-free and low-wear shaking mechanism, continuously adjustable electronic speed control, gentle start-up.
Height-adjustable sample holders.
Four double-walled arched lids with insulating capacity - no dropping back of condensed water into the vessels.
Bath interiors and shaking racks made of stainless steel.
Corrosion proof exterior housing made of electrolytically galvanised sheet steel, powder-coated.
Drain cock at the back of the bath.
Applications: THERMOLAB ® is versatilely applicable and exemplary when an excellent temperature constancy is called for, e. g. for polymerase chain reactions (PCR), for the preparation of enzyme and DNA tests or hybridisations.
