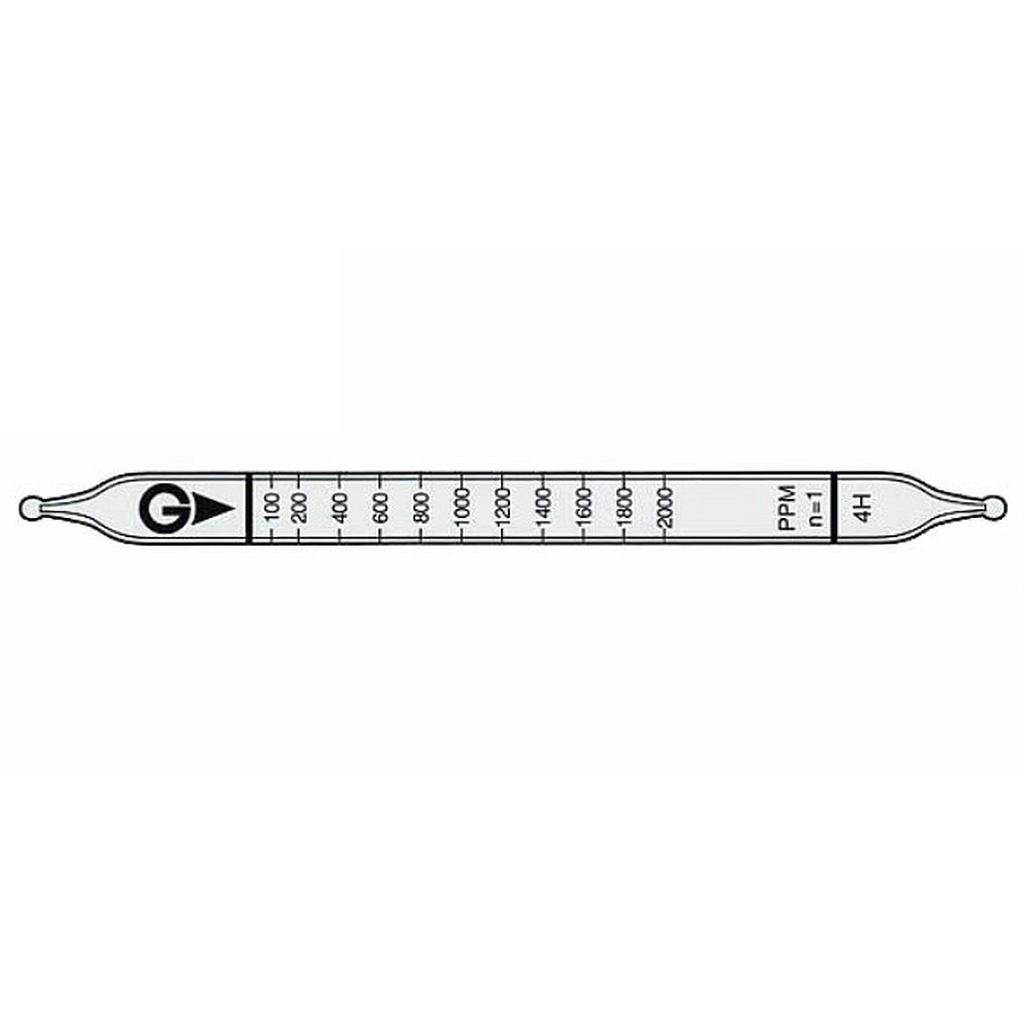

Indicator: 100 to 2000 ppm
Measuring Range:
+ 10 ~ 100 ppm, Number of Pump Strokes 2 to 10
+ 100 ~ 2000 ppm, Number of Pump Strokes 1
+ 2000 ~ 4000 ppm, Number of Pump Strokes 1/2
Sampling Time: 45 seconds per pump stroke
Colour Change: White → Brown
Reaction Principle: H2S + Pb(CH3COO)2 → PbS + 2CH3COOH
Coefficient of Variation: 5% (for 100 to 2000 ppm)
Nr. of tests: 10
Pump: GV-100S/110S
Detail
Catalog
Manual
Manual tubes
Performance
| Measuring Range |
| 10 to 100 ppm |
100 to 2000 ppm |
2000 to 4000 ppm |
|
| Number of Pump Strokes |
|
| Correction Factor |
|
| Sampling Time |
45 seconds per pump stroke |
| Detecting Limit |
2 ppm (n=10) |
| Colour Change |
White → Brown |
| Reaction Principle |
H2S + Pb(CH3COO)2 → PbS + 2CH3COOH |
| Coefficient of Variation |
5% (for 100 to 2000 ppm) |
| Shelf Life |
3 Years |
| Corrections for temperature & humidity |
Unnecessary |
| Store the tubes at cool and dark place. |
Possible coexisting substances and their interferences
(NOTE)
| Substance |
Concentration |
Interference |
Change colour by itself to |
| Ammonia |
|
No |
No |
Carbon monoxide,
Carbon dioxide |
|
No |
No |
| sulphur dioxide |
1/1 |
+ |
No |
| Mercaptans |
|
No |
No |
| Organic substance |
|
No |
No |
| Nitrogen dioxide |
1/4 |
 |
No |
| Calibration gas generation |
Permeation tube method |
| TLV-TWA |
TLV-STEL |
Explosive range |
| 1 ppm |
5 ppm |
4.0 to 44% |
