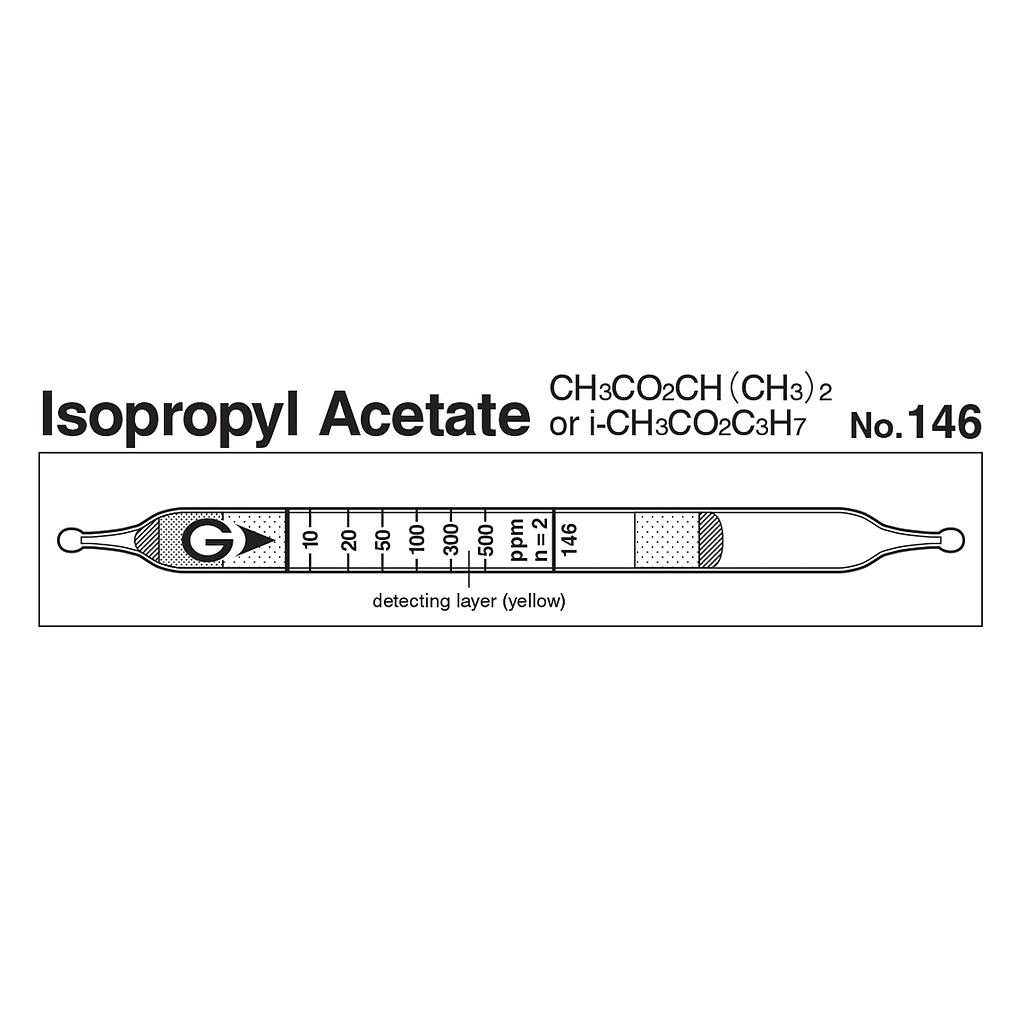

Gastec 146 便携式气体检测管醋酸异丙脂检测管CH3CO2CH(CH3)2(10~500 ppm)

Indicator: 10 ~ 500 ppm
Measuring Range: 10 ~ 500 ppm, Number of Pump Strokes 2
Sampling Time: 2 minute per pump stroke
Colour Change: Yellow → Blackish brown → Pale blue after few minutes
Reaction Principle: CH3CO2CH(CH3)2+ Cr6+ + H2SO4 → Cr3+
Coefficient of Variation: 15% (for 20 to 100 ppm), 10% (for 100 to 500 ppm)
Nr. of tests: 10
Pump: GV-100S/110S

Detail

Catalog

Manual

Performance
Measuring Range 10 to 500 ppm
Number of Pump Strokes 2
Correction Factor 1
Sampling Time 2 minutes per pump stroke
Detecting Limit 5 ppm (n=2)
Colour Change Yellow → Blackish brown → Pale blue after few minutes
Reaction Principle CH3CO2CH(CH3)2+ Cr6+ + H2SO4 → Cr3+
Coefficient of Variation 15% (for 20 to 100 ppm), 10% (for 100 to 500 ppm)
Shelf Life 2 Years
Corrections for temperature & humidity Temperature correction is necessary
Store the tubes at cool and dark place.
Possible coexisting substances and their interferences (NOTE)
Substance Concentration Interference Change colour by itself to
Alcohols   + Blackish brown then turns to pale blue
Ketones   + Blackish brown then turns to pale blue
Esters   + Blackish brown then turns to pale blue
Calibration gas generation Diffusion tube method
TLV-TWA TLV-STEL Explosive range
100 ppm 200 ppm 1.8 to 8%
