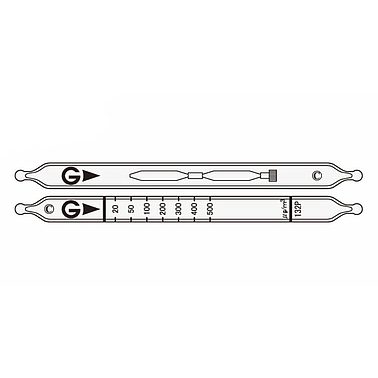

Gastec 132P 检测三氯乙烯气体管Cl2C:CHCl(20 - 1200μg/m3)

Calibration Range: 20 - 500 μg/m3
Measuring Range: 20 - 1200 μg/m3
Sampling (flow) Rate: 100mL/min
Sampling Volume: 3000mL,1500mL
Sampling Time:  30min,15min
Colour Change: Yellow → Purple
Nr. of tests: 5 tubes
Automatic Gas Sampler: GSP-300FT-2

Details

Catalog

Specifications
Calibration Range 20 - 500 μg/m3
Measuring range 20 - 1200 μg/m3
Sampling (flow) Rate 100mL/min
Sampling Volume 3000mL,1500mL
Sampling Time 30min,15min
Detecting Limit 5 μg/m3
Colour Change Yellow → Purple
Corrections for temperature/humidity Necessary for 5 to 40ºC
Unnecessary for R.H.20 to 80%
Shelf life 2 years
Accuracy CV=5-10%
(CV: Coefficient of variation = σ: standard deviation / mean value x 100)
Possibly coexisting substances and their interferences (NOTE)
Substance(s) Interference Colour change by itself
Hydrogen chloride,Chlorine   No No
Vinyl chloride   + Purple
1,2-Dichloroethylene   + Purple
Tetrachloroethylene   + Purple
1,1,1-Trichloroethane   No No
Toluene,Xylene   No No
Calibration gas generation Permeation tube method

TLV-TWA TLV-STEL Explosive range
10 ppm 25 ppm --
