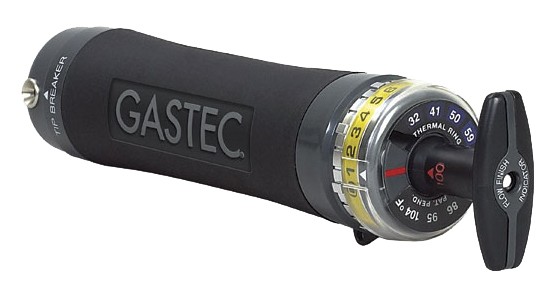

IThe Model GV-100 /GV-110 Gas Sampling Pump can precisely collect a sample volume for a detector tube.
The full-stroke (100mL) and the half stroke (50 ml) positions are marked exactly by the red line on the pump shaft, and the handle is precisely locked at those positions.
If you pump fully n times by allowing for sampling time intervals, a volume of 100 ml_ x n can be sampled.
Each detector tube is calibrated based upon a prescribed (standard) volume of sample.
Also the pump piston has been designated with a smaller diameter so that the handle can be pulled out with even less effort.
Gastec piston sampling pump design proves you with advanced non sparking design and superior features.
Chọn mua khí độc Gastec dùng với bơm GV-100S, GV-110S theo bảng sau
|
No |
Tube |
Name |
Chemical |
Measuring Range |
Nr. |
|
1 |
1HH |
Carbon Monoxide Tube |
CO |
1-50% |
10 |
|
2 |
1H |
Carbon Monoxide Tube |
CO |
0.1-10% |
10 |
|
3 |
1M |
Carbon Monoxide Tube |
CO |
0.05 ~ 4.0% |
10 |
|
4 |
1LM |
Carbon Monoxide Tube |
CO |
25 ~ 2000 ppm |
10 |
|
5 |
1L |
Carbon Monoxide Tube |
CO |
2.5 ~ 2000 ppm |
10 |
|
6 |
1 LA |
Carbon Monoxide Tube |
CO |
8 ~ 1000 ppm |
10 |
|
7 |
1LK |
Carbon Monoxide Tube |
CO |
5 ~ 600 ppm |
10 |
|
8 |
1LKC |
Carbon Monoxide Tube |
CO |
5 ~ 100 ppm |
5 |
|
9 |
1LL |
Carbon Monoxide Tube |
CO |
5 ~ 50 ppm |
10 |
|
10 |
1LC |
Carbon Monoxide Tube |
CO |
1 ~ 30 ppm |
10 |
|
11 |
2HT |
Carbon Dioxide Tube (with No.611 Syringe) |
CO2 |
|
10 |
|
12 |
2HH |
Carbon Dioxide Tube |
CO2 |
2.5 ~ 40% |
10 |
|
13 |
2H |
Carbon Dioxide Tube |
CO2 |
0.5 ~ 20% |
10 |
|
