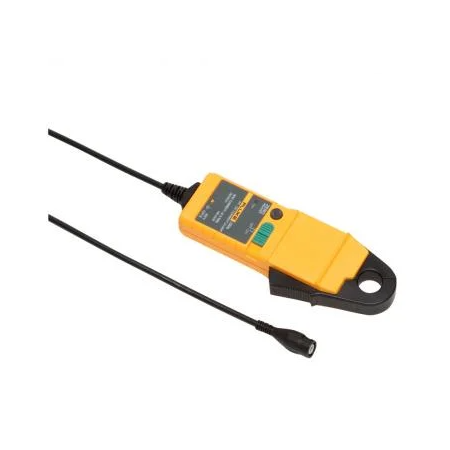

FLUKE i30s AC/DC钳形表 (30mA~30ADC, 30mA~20AACrms)

Electrical specifications

Specified current range: 30 mA to 30 A DC, 30 mA to 20 A AC rms

Usable current range: 5 mA to 30 A DC, 30 mA to 20 A AC rms

Crest factor: 1.4 in

Output sensitivity: 100 mV/A

Accuracy (at +25°C): ±1% of reading ±2 mA

Resolution: ±1 mA

Load impedance: > 100 kΩ

Conductor position sensitivity: ±1% relative to center reading

Frequency range: DC to 100 kHz (-0.5 dB)

Phase shift below 1 kHz: < 2°

Temperature coefficient: ±0.01% of reading / °C

Power supply: 9 V Alkaline, MN1604/PP3, 30 hours, low battery indicator

Working voltage (see Safety Standards section): 300 V AC rms or DC

General Specifications

Maximum conductor size: 19 mm diameter

Output connection: Safety BNC connector, supplied with safety 4 mm adapter

Output zero: Manual adjust via thumbwheel

Cable length: 2 m

Operating temperature range: 0°C to +50°C

Storage temperature range (with battery removed): -20°C to +85°C

Operating humidity: 15% to 85% (non-condensing)

Weight: 250 g

Safety: IEC 61010-1, Pollution Degree 2

IEC 61010-2- 032: CAT III 300V

Use of the probe on uninsulated conductors is limited to 300 V ac rms or dc andfrequencies below 1 kHz.

EMC Compatibility: IEC 61326-1: Portable Electromagnetic Environment
