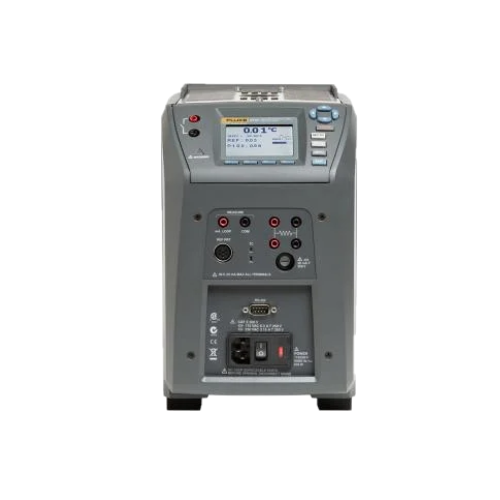

Fluke (Calibration) 9142-A-156 温度校准仪 (–25°C - 150°C)

Temperature Range at 23 °C: –25 °C to 150 °C (–13 °F to 302 °F)

Display Accuracy: ± 0.2 °C Full Range

Stability: ± 0.01 °C Full Range

Axial Uniformity at 40 mm (1.6 in): ± 0.05 °C Full Range

Radial Uniformity: ± 0.01 °C Full Range

Hysteresis: 0.025

Immersion (Well) Depth: 150 mm (5.9 in)

Insert OD: 30 mm (1.18 in)

Heating Time: 16 min: 23 °C to 140 °C

Cooling Time: 15 min: 23 °C to –25 °C

Resolution: 0.01 °

Display: LCD, °C or °F user-selectable

Size (H x W x D): 290 mm x 185 mm x 295 mm

Weight: 8.16 kg

Power Requirements: 100 V to 115 V (± 10 %) 50/60 Hz, 635 W 230 V (± 10 %) 50/60 Hz, 575 W

Computer Interface: RS-232 and 9930 Interface-it control software included
