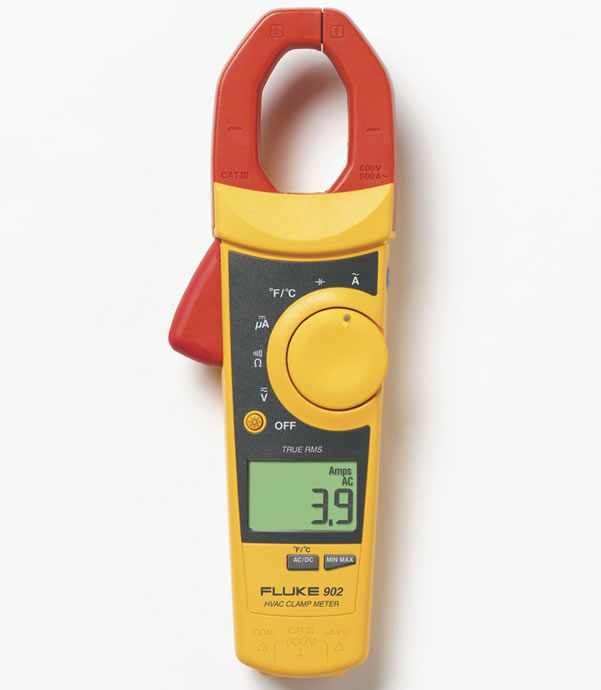

Fluke 902 真有效值数字钳形表（600A）

Name: Fluke 902 真有效值数字钳形表（600A）
Brand: FLUKE
SKU: FLUKE902
Availability: OutOfStock

DCV: 0 – 600.0 V /1% ± 5 counts

ACV (True RMS): 0 – 600.0 V /1% ± 5 counts

ACA(True RMS): 0 – 600.0 A /2.0% ± 5 counts

DCA: 0 - 200.0 µA /1.0% ± 5 counts

R: 0 – 9999 Ω /1.5% ± 5 counts

Continuity: yes

Temperature type K: -10 oC to 400 oC (-14 oF to 752 oF)

C: 1-1000 µF /1.9% ± 2 counts

Weight: 1.5 lbs (.7 kg)

Dimensions: 10.75” x 4.25” x 2.44” (27.3 cm x 10.8 cm x 6.2 cm)

Battery type: 2xAA Alkaline Batteries

Includes: 2xAA Alkaline batteries, Users manual, Soft carrying case, TL75 Test Leads , 80BK Integrated DMM Temperature Probe

Details

Specifications

Voltage DC

Range	0 – 600.0 V
Accuracy	1% ± 5 counts

Voltage AC (True RMS)

Range	0 – 600.0 V
Accuracy	1% ± 5 counts (50/60 Hz)

Current AC (True RMS)

Range	0 – 600.0 A
Accuracy	2.0% ± 5 counts (50/60 Hz)

Current DC

Range	0 - 200.0 µA
Accuracy	1.0% ± 5 counts

Resistance

Range	0 – 9999 Ω
Accuracy	1.5% ± 5 counts

Continuity

<= 30 Ω

Temperature*
(Type K Thermocouple)

Range	-10 degree C to 400 degree C (-14 degree F to 752 degree F)
Accuracy	+/- 1.0% + 0.8 degree C (+/- 1.0% + 1.5 degree F) typical
Range	-40 degree C to -10 degree C (-40 degree F to -14 degree F)
Accuracy	+/- 5.0% + 1.5 degree C (+/- 5.0% + 3.3 degree F) typical
