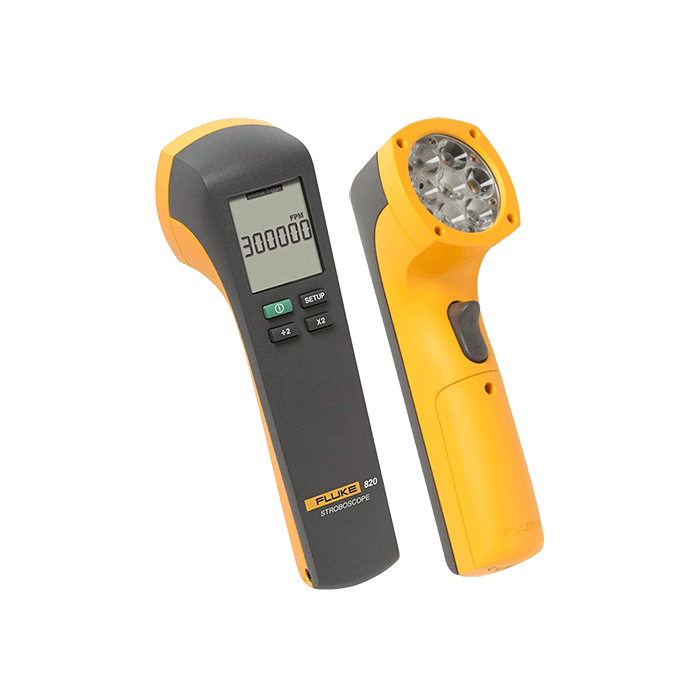

FLUKE 820-2 LED 频闪仪 (30 - 300.000FPM)

Mechanical Specifications

Size (HxWxL): 5.71 cm x 6.09 cm x 19.05 cm

2.25 in x 2.4 in x 7.5 in

Weight: 0.24 kg

Environmental Specifications

Operating temperature: 0 °C to +45 °C

Storage temperature: -10 °C to +50 °C

Operating humidity (without ondensation): Non-condensing (<10 °C)

90 % RH (10 °C to 30 °C)

75 % RH (30 °C to 40 °C)

45 % RH (40 °C to 50 °C)

Absorption/corrosion: 30 °C, 95 % RH, 5 day

Product functions normally

Operating altitude: 2,000 m

Storage altitude: 12,000 m

Vibration: MIL-PRF-28800F Class 2

Impact resistance: 1 m drop

EMI, RFI, EMC: EN61326-1:2006

Safety Compliance

Agency approvals: CE

Class III (SELV) Pollution Degree 2

Miscellaneous Specifications

Flash Frequency

Range: 30 to 300,000 FPM

0.5 to 5000 Hz

Accuracy: 0.02 %

Resolution: 30 to 999 FPM = 0.1

1000 to 300,000 = 1

0.5 Hz to 999 Hz = 0.1

1000 Hz to 5000 Hz = 1

Frequency setting: FPM or Hz

Flash Pulse

Duration: Adjustable in μs or degrees

Delay: Adjustable in μs or degrees

Light

Color: Approximately 6500 K

Emission output: 4,800 lx @ 6000 FPM at 30 cm

External Trigger

Method: Connector to externally control trigger

High level: 3 V to 32 V

Low level: <1 V

Minimum pulse width: 50 μs connection
