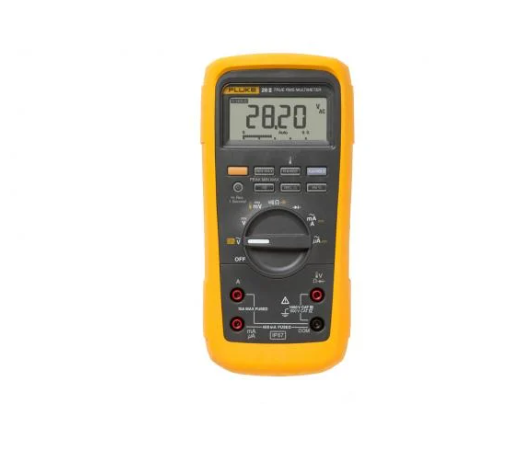

主页 万用表 FLUKE 28II 工业万用表 (IP67)

FLUKE 28II 工业万用表 (IP67)

DCV: 0.1 mV to 1000 V / 0.05 %

AC V: 0.1 mV to 1000 V / 0.7 %

DCA : 0.1 μA to 10 A / 0.2 %

ACA:  0.1 μA to 10 A /1.0 %

R:  0.1 Ω to 50 MΩ

C:  1 nF to 9999 μF

F: .5 Hz to 199.99 kHz

Temperature: -200 °C to +1090 °C

Low pass filter: yes

Bar graph/backlight :Yes

Min/Max/Avg  Yes

Reading hold    Yes

IP rating:  IP 67

Power: Three AA batteries

Size (HxWxL) with holster: 6.35 cm x 10.0 cm x 19.81 cm (2.5 in x 3.93 in x 7.8 in)

Weight with holster:  698.5 g (1.54 lb)

Includes: Holster, Test Leads, Alligator Clips, Printed Getting Started Manual, CD ROM Manual, 3 AA Batteries


Details
Accuracy specifications
DC voltage
Range  0.1 mV to 1000 V
Accuracy  27-II:0.1 % +1
28-II:0.05 % + 1
AC voltage
Range  0.1 mV to 1000 V
Accuracy  27-II: 0.5 % +3
28-II: 0.7 % +4
DC current
Range  0.1 μA to 10 A
Accuracy  27-II: 0.2 % + 4
28-II: 0.2 % + 4
AC current
Range  0.1 μA to 10 A
Accuracy  27-II: 1.5 % + 2
28-II: 1.0 % + 2
Resistance
Range  0.1 Ω to 50 MΩ
Display counts
27-II  6000
28-II  6000/19,999
Capacitance
   1 nF to 9999 μF
Frequency
   0.5 Hz to 199.99 kHz
Temperature
   27-II: N/A
28-II: -200 °C to +1090 °C
Low pass filter (Measurement on VSD’s)
   27-II: N/A
28-II: Yes
Compliance
   CAT IV 600 V , CAT III 1000V
IP rating
27-II:  IP 67
28-II:  IP 67
Power
   Three AA batteries
Battery life
   800 hours



General specifications
Display
Bar graph/backlight  Yes/Yes
Data storage
Peak transient capture  250 μS (28 II)
Min/Max/Avg  Yes
Reading hold  Yes
Other features
Relative readings (zero)  Yes
Battery type  Three AA batteries
Warranty and protection
Safety rating  CAT IV 600 V/CAT III 1000 V
Mine Safety  MSHA Approved
External protection  Rubber holster
Drop test  10 feet drop test
Dustproof/waterproof  Yes, IP 67 rated
Warranty  Limited lifetime
Size (HxWxL) with holster  6.35 cm x 10.0 cm x 19.81 cm (2.5 in x 3.93 in x 7.8 in)
Weight with holster  698.5 g (1.54 lb)



Tags:Fluke 28 II Industrial Multimeter
