FlowT FT221 Ultrasonic Flow Meter (±0.01 m/s~ ±12 m/s, ±1%)

Performance specifications

Flow range: ±0.03 ft/s ~ ±40 ft/s (±0.01 m/s~ ±12 m/s)

Accuracy: ±1% of measured value

Pipe size: Clamp-on:1"~48"(25mm~1200mm)

Fluid: Single medium liquid

Pipe material: Carbon steel,stainless steel,PVC and other compact material pip


Function specifications:

Outputs: Analog output: 4~20mA, Max 750 Ω.

              Modbus: RS485

SD card: 16G

Interval: 1 ~ 99999seconds

Key broad: Digital keys

Display: 240*128 back lit LCD

Power supply: Rechargeable Lithium Battery Power,3000mAh

                       (Continuous operation of main battery 16 hours).

Temperature: Transmitter: -40℃~60℃

                     Transducer: -40℃~80℃ (-40℃~80℃ is standard; -40℃~130℃ is an option)

Humidity: Up to 99% RH,non-condensing


Physical specifications

Transmitter:NEMA13,IP54.

Transducer:Encapsulated design,IP68

Transducer cable Standard cable length: 5m (16ft).

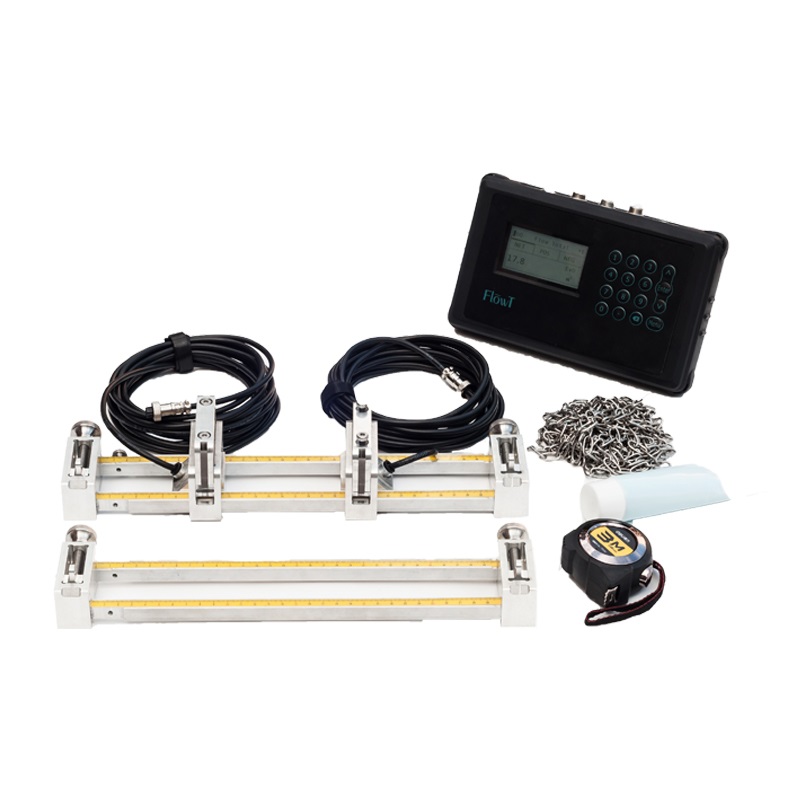

Accessories

1. Carrying Case*1pc.

2. Transmitter (Electronic)*1pc.

3. Transducer (Sensor) *1 pair.

4. Mounting track*1 set, ST or DT

5. Pipe straps *2 pairs.

6. Coupling compound (Grease)*1 pc, Battery charge*1pc, Output cable*1pc and Tapeline*1

Details

Datasheet
