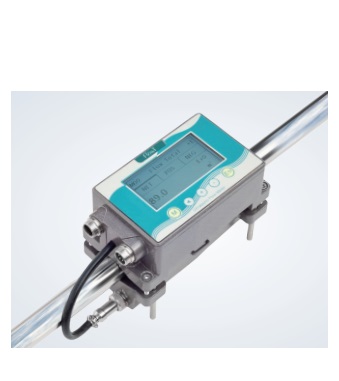

FlowT FT211 超声波流量计 (60~400 L/m)

Pipe material: Metal /PVC, PP or PVDF rigid plastic pipe

Liquid type: Water/other liquid (Single liquid medium without solid particles or impurities)

Temperature range: 0-75℃ (No freezing on the surface)

Low velocity cut off value (Default by factory): 0.1m/s

Display: 256*128, LCD

Response time: 0.5~60s

Accuracy: ±2%, (±1% after calibration)

Data Storage period: 300ms

Memory for data backup: EEPROM (Data storage: over 10 years, data read/write frequency: over 1 million times)

Power and I/O connection: M12 type aviation plug

Output: 4-20mA

Communication: Modbus RS485

(Options for output: OCT (pulse output)/ One relay alarm (please contact the factory)

Power supply: 10-24V VDC

Electric power: < 3W

Protective circuit: Power reverse connection protection, Power surge protection,

                            Output short circuit protection, Output surge protection

Enclosure protection class: IP65

Environment temperature: -10 to 60°C (No freezing)

Relative humidity: 35 to 85% RH (No condensation)

Vibration resistance: 10 to 55 Hz

                                  double amplitude 1.5 mm, 2 hours in each XYZ axis

Impact resistant: 100 m/s2 16 ms pulse, 1000 times each for X, Y and Z axis

Main material: Aluminum, Industrial Plastics

Cable length: 2m(standard ), PT1000 sensor standard cable length is 9m

Flow Range

Pipe size (DN) Upper flow value(L/min)

15                    60 L/m

20                    100 L/m

25                    200 L/m

32                    300 L/m

40                    400 L/m
